GPS-CON
GPS Converter for the Connection of a Third Party GPS L1 Antenna to a Meinberg GPS Receiver
The Meinberg GPS converter allows the connection of a GPS L1 antenna (1575.42MHz) of other vendors to a Meinberg GPS receiver which uses an intermediate frequency.

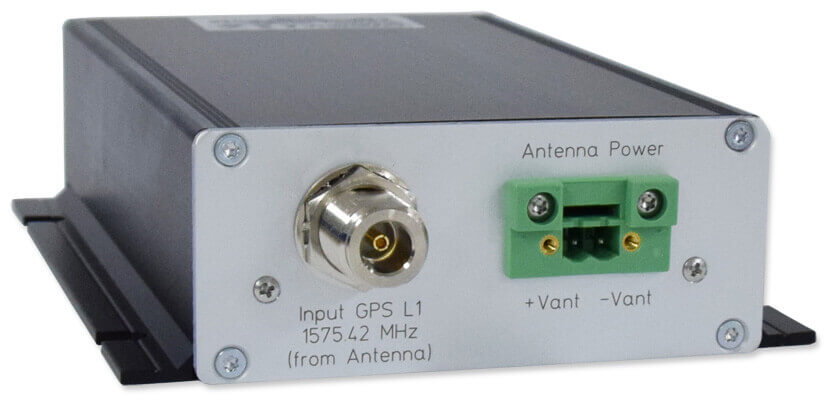

The module doesn’t provide any DC voltage for powering active antennas, the DC voltage has to be applied externally via the 2-pin screw terminal.
Key Features
- Power for active GPS antenna via screw terminal
- Easy mounting
- Two housing types:
- 35mm railmount
- Case for wallmount
Need help selecting the right solution?
Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.
Technical Specifications
| Warranty | 3 years |
|---|---|
| Operating Temperature | 0 to 50°C |
| RoHS | Yes |
| Form Factor | Aluminium housing for 35mm DIN mounting rails: Aluminium case for wallmount (bracket holes fit for 19 inch mounting rack): |
| Electrical Connectors |
|

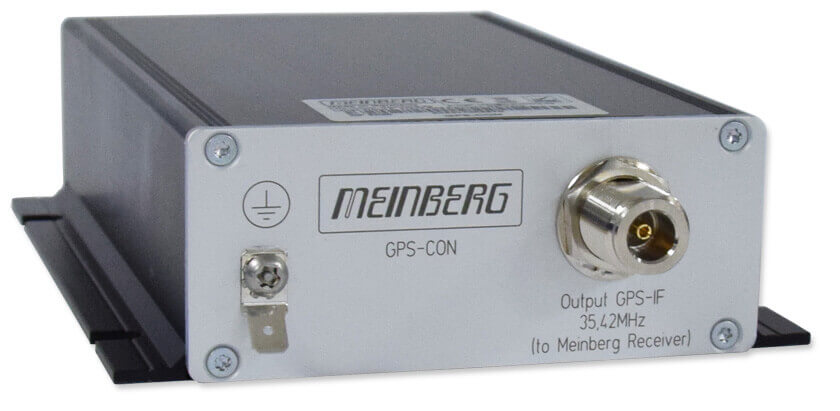

| Ouput Frequency | 35.42 MHz intermediate frequency for Meinberg GPS receivers |
| Type of Antenna | GPS L1 C/A-code antenna Receive frequency: 1575.42 MHz |
| WEEE Status of the Product | This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. |
