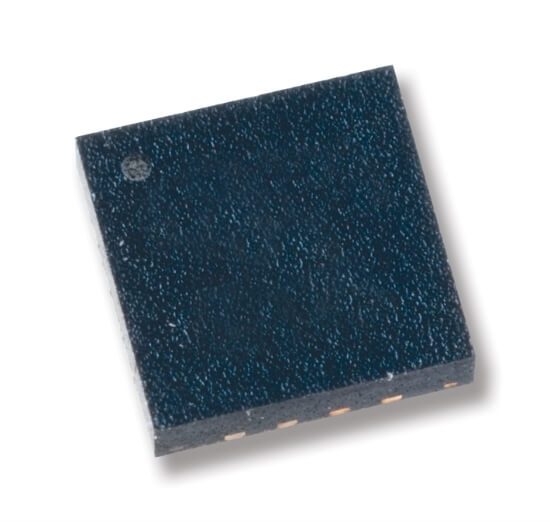

HI-1579A
3.3V operation. Precision receiver thresholds. MIL-STD-1760 compatible. Uses isolation transformer ratio 1:2.5 for transformer coupled mode.
Holt Integrated Circuits continues its support of the MIL-STD-1553 / 1760 data buses, releasing a dual 3.3V transceiver with precision receiver thresholds. The HI-1579A receiver outputs can be independently forced to the bus idle state (logic ‘0’) by setting RXENA or RXENB low.
The part is available in a 20-pin SOIC package with integrated metal heat sink in the base of the device to ensure adequate heat dissipation in even the most demanding environments.
The HI-1579A uses the same, industry standard 1:2.5 turns ratio transformer as Holt’s 5V parts.
Samples of the HI-1579A are readily available upon request.
Need help selecting the right solution?
Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.
Technical Specifications
| Release Date | 2016 |
|---|---|
| Applications |
|
Downloads
| Datasheet | Click to view Datasheet (PDF) |
|---|
