HI-1582
3.3V Operation. MIL-STD-1760 compatible. Uses isolation transformer ratio 1:2.5 for transformer coupled mode. Drop-in replacement for Data Device Corporation transceiver, BU-63133L8.
The HI-1582 low power CMOS transceiver is designed to meet the requirements of the MIL-STD-1553 and MIL-STD-1760 specifications. It is a pin-compatible, form and fit drop-in replacement for the Data Device Corporation (DDC®) MIL-STD-1553 transceiver, BU-63133L8.
The transmitter section of each bus takes complementary CMOS / TTL Manchester II bi-phase data and converts it to differential voltages suitable for driving the bus isolation transformer. A logic level Transmit Inhibit control input is provided.
The receiver section converts the 1553 bus bi-phase data to complementary CMOS / TTL data suitable for input to a Manchester decoder. The receiver has a separate enable input pin, STROBE, which, when low, forces the receiver outputs to logic ‘0’.

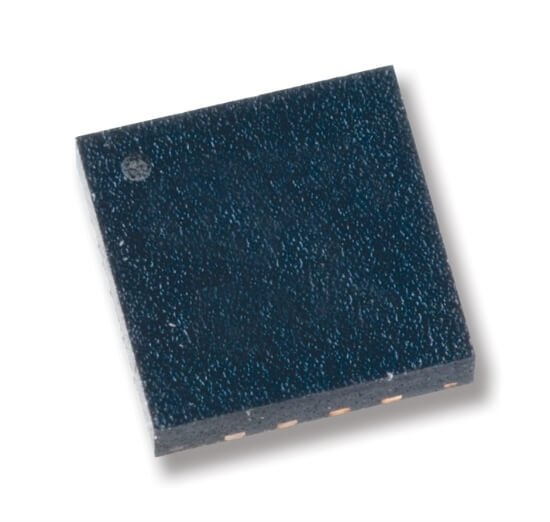

The HI-1582 is packaged in a 32-pin plastic chip-scale package (QFN) with an integral exposed heatsink on the package bottom. The heatsink may be soldered to the PCB ground plane for optimal thermal dissipation. The HI-1582 is available in industrial (-40°C to +85°C) or extended (-55°C to +125°C) temperature range options.
Key Features
- Compliant to MIL-STD-1553A and B, MIL-STD-1760 and ARINC 708A
- 3.3V Single Supply Operation
- Small 7mm x 7mm 32-pin plastic chip-scale package
- Less than 0.5W maximum power dissipation
- Single Transceiver allows full dual redundancy
- Drop in replacement for DDC BU-63133L8
Need help selecting the right solution?
Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.
Technical Specifications
| Release Date | 2013 |
|---|---|
| Applications |
|
Downloads
| Datasheet | Click to view Datasheet (PDF) |
|---|
