Holt Integrated Circuits
HI-1584PCIF
SKU: HI-1584PCIF
HI-1584 Series MIL-STD-1553 Drop-in replacement for DDC? transceiver, BU-67401L0C0x-102.
The HI-1584 is an ultra-low power CMOS dual transceiver designed to meet the requirements of the MIL-STD-1553 and MIL-STD-1760 specifications. It is a pin-compatible, ‘form, fit and function’ drop-in replacement for the Data Device Corporation (DDC?)?MIL-STD-1553 transceiver, BU-67401L0C0x-102.
Key Features
- Compliant to MIL-STD-1553A and B, MIL-STD-1760 and ARINC 708A
- 3.3V Single Supply Operation
- Small 7mm x 7mm 48-pin plastic chip-scale package
- Less than 0.5W maximum power dissipation
- Drop in replacement for DDC BU-67401L0C0x-102
Need help selecting the right solution?
Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.
Technical Specifications
| Temperature Range | -40°C to +85°C |
|---|---|
| RoHS | Yes |
| Applications |
|
| Flow | I |
| Moisture Sensitivity Level | 3 |

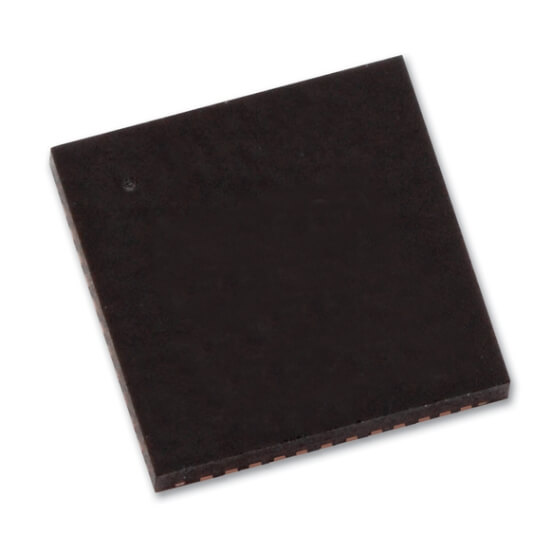

| Package Description | 48 Pin Plastic 7mm x 7mm Chip-Scale Package (QFN) |
| Product Longevity | > 10 years |
| Theta JA C W | 27.3 |
| Theta JB C W | 15.8 |
Downloads
| Datasheet | Click to view Datasheet (PDF) |
|---|
