HI-3000CRH
HI-3000 Series 1 Mbps Controller Area Network transceiver IC
The HI-3000H is a 1 Mbps Controller Area Network (CAN) transceiver optimized for use in high temperature avionics applications. The device is capable of operating at extended temperature ranges of -55?C to 175?C for plastic packages and -55?C to 200?C for the ceramic CERDIP-8 package. It interfaces between a CAN protocol controller and the physical wires of the bus in a CAN network. Differential output amplitude and current drive capability are specifically enhanced to meet the needs of long cable runs typical of avionics applications.
Key Features
- Extended Temperature Ranges -55°C to 175°C (plastic SOIC-8 package) and -55°C to 200°C (ceramic CERDIP-8 package)
- Compatible with ARINC 825 and ISO 11898-5 standards
- Signalling rates up to 1Mbit/s
- Internal VDD/2 voltage source available to stabilize the recessive bus level if split termination is used (SPLIT pin)
- Detection of permanent dominant on TXD pin (babbling idiot protection)
- High impedance allows connection of up to 120 nodes
- Input levels compatible with 3.3V or 5V controllers
- CANH, CANL and SPLIT pins short-circuit proof to +/-58V
- Will not disturb the bus if unpowered
Need help selecting the right solution?
Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.
Technical Specifications
| Temperature Range | -55°C to +200°C |
|---|---|
| RoHS | No |
| Applications |
|
| Flow | H |

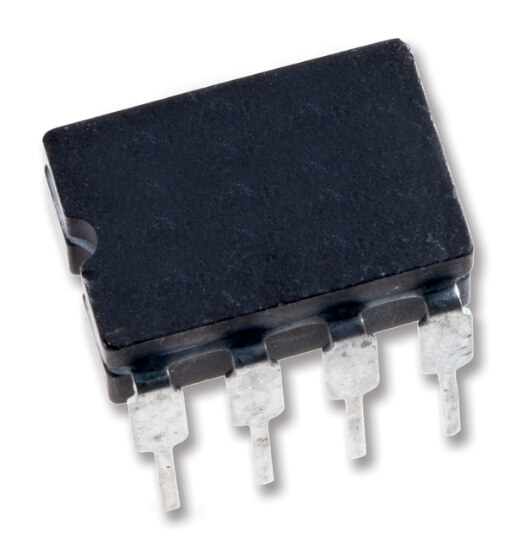

| Package Description | 8 Pin CerDIP |
| Product Longevity | > 10 years |
Downloads
| Datasheet | Click to view Datasheet (PDF) |
|---|
