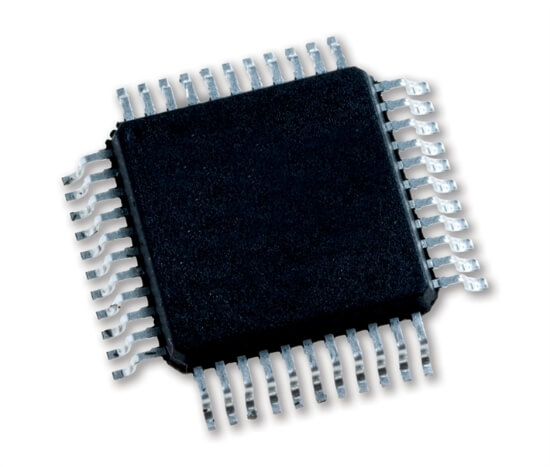

HI-3717APQMF
HI-3717 Series ARINC 717 Interface IC
The HI-3717A from Holt Integrated Circuits is a CMOS device designed for interfacing an ARINC 717 compatible bus to a Serial Peripheral Interface (SPI) enabled micro-controller. The part includes selectable Harvard Bi-Phase (HBP) and Bi-Polar Return-to-Zero (BPRZ) channels with encoders/decoders and dedicated line drivers and line receivers for direct connection to the ARINC 717 bus. The part operates from a single +3.3V supply using only four external capacitors. Each transmit and receive channel has a 32-word by 12-bit FIFO for data buffering. The HI-3717A is available in very small 44-pin 7mm x 7mm Chip-scale (QFN) and 44-pin Quad Flat Pack (PQFP) plastic packages.
Need help selecting the right solution?
Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.
Technical Specifications
| Temperature Range | -55°C to +125°C |
|---|---|
| RoHS | Yes |
| Applications |
|
| Burn In | Yes |
| Flow | M |
| Moisture Sensitivity Level | 3 |
| Package Description | 44 Pin Plastic Quad Flat Pack (MQFP) |
| Product Longevity | > 10 years |
| Theta JB C W | 25.44 |
Downloads
| Datasheet | Click to view Datasheet (PDF) |
|---|
