HI-3718PQIF
SKU: HI-3718PQIF
HI-3718 Series ARINC 717 Interface IC
The HI-3718 is a low-power CMOS transceiver designed to meet the requirements of the ARINC 717 and ARINC 429 specifications. The device acts as an interface between ARINC 717 or ARINC 429 digital protocols and the Harvard Bi-Phase (HBP) and/or Bi-Polar Return-to-Zero (BPRZ) encoded physical layers.
Key Features
- Compliant with ARINC 717 and ARINC 573 standards
- BPRZ line driver and line receiver are ARINC 429 compliant
- Operates from a single +3.3V supply with on-chip DC/DC converter
- Independent Harvard Bi-Phase and Bipolar Return-to-Zero line drivers with digital slew rate control: set rise/fall times to 1.5?s, 3.75?s, 7.5?s or 10?s
- Line drivers have independent tri-state control
- HBP and BPRZ line receivers have common inputs
- DC/DC converter may be disabled if external V+ and V- supplies are desired
- “-40” inputs allow for DO-160G level 3 lightning protection using only two external resistors
- Industrial and Extended temperature ranges
Need help selecting the right solution?
Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.
Technical Specifications
| Temperature Range | -40°C to +85°C |
|---|---|
| RoHS | Yes |
| Applications |
|
| Burn In | No |
| Flow | I |
| Moisture Sensitivity Level | 3 |

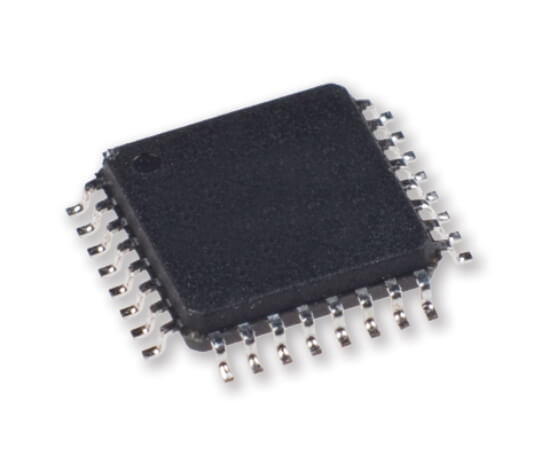

| Package Description | 32 Pin Plastic Quad Flat Pack (TQFP) |
| Product Longevity | > 10 years |
| Theta JB C W | 28.85 |
Downloads
| Datasheet | Click to view Datasheet (PDF) |
|---|
