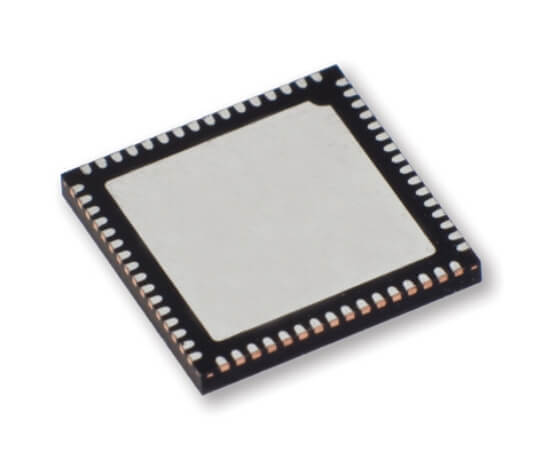

HI-6131PCTF
HI-6131 Series MIL-STD-1553 Integrated 3.3V multi-function interface IC
The 3.3V CMOS HI-613x device provides a complete single- or multi-function interface between a host processor and MIL-STD-1553B bus. Each IC contains a Bus Controller (BC), a Bus Monitor Terminal (MT) and two independent Remote Terminals (RTs). Any combination of the contained 1553 functions can be enabled for concurrent operation. The enabled terminals communicate with the MIL-STD-1553 buses through a shared on-chip dual bus transceiver and external transformer. The user allocates 64K bytes of on-chip static RAM between devices to suit application requirements.
Key Features
- The HI-6130 uses a 16-bit parallel bus
- The HI-6131 communicates with the host via a 4-wire serial peripheral interface (SPI).
Need help selecting the right solution?
Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.
Technical Specifications
| Temperature Range | -55°C to +125°C |
|---|---|
| RoHS | Yes |
| Applications |
|
| Flow | T |
| Moisture Sensitivity Level | 3 |
| Package Description | 64 Pin Plastic 9mm x 9mm Chip-scale Package (QFN) |
| Product Longevity | > 10 years |
| Theta JA C W | 21.8 |
| Theta JB C W | 7.5 |
Downloads
| Datasheet | Click to view Datasheet (PDF) |
|---|
