HI-6138PQT
HI-6138 Series MIL-STD-1553 Integrated 3.3V multi-function bus to processor IC
The 3.3V CMOS HI-6138 device provides a complete single- or multi-function interface between a host processor and MIL-STD-1553B bus. Each IC contains a Bus Controller (BC), a Bus Monitor Terminal (MT) and a Remote Terminal (RT). Any combination of the contained 1553 functions can be enabled for concurrent operation. The enabled terminals communicate with the MIL-STD-1553 buses through a shared on-chip dual bus transceiver and external transformers. The user allocates 16K bytes (8K x 17-bit words) of on-chip static RAM between devices to suit application requirements.
Need help selecting the right solution?
Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.
Technical Specifications
| Temperature Range | -55°C to +125°C |
|---|---|
| RoHS | No |
| Applications |
|
| Flow | T |
| Moisture Sensitivity Level | 3 |

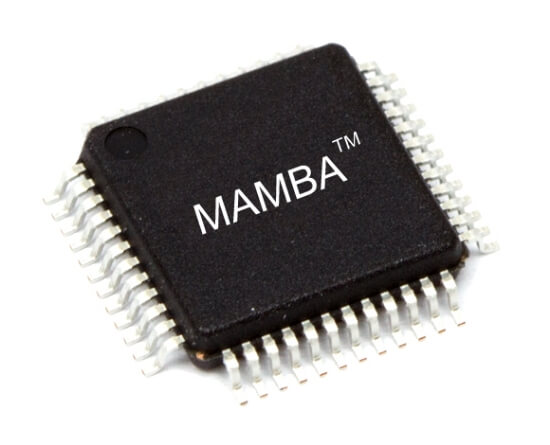

| Package Description | 48 Pin Plastic Quad Flat Pack (LQFP) |
| Product Longevity | > 10 years |
| Theta JA C W | 37.9 |
| Theta JB C W | 24.6 |
Downloads
| Datasheet | Click to view Datasheet (PDF) |
|---|
