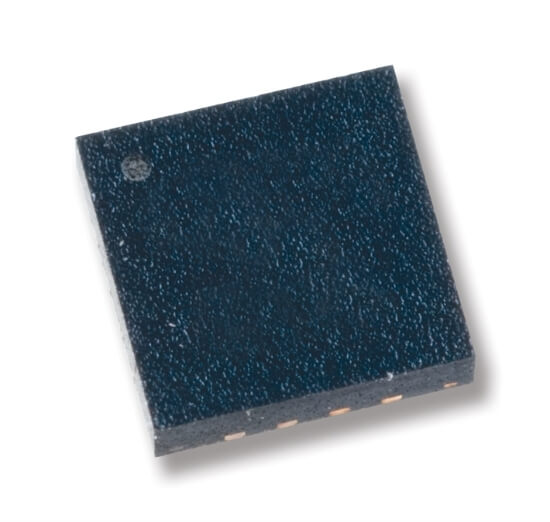

HI-6139
World's smallest solution. 3.3V. MIL-STD-1553A/B. BC, MT and RT may operate concurrently. Integrated dual transceivers. 8K x 17 RAM with parity, 40 MHz Serial Peripheral host Interface (SPI).
The 3.3V CMOS HI-6139 device is a member of Holt’s MIL-STD-1553 MAMBATM family and provides a complete single or multi-function interface between a host processor and MIL-STD-1553B bus (a register bit provides optional MIL-STD-1553A operation). Each IC contains a Bus Controller (BC), a Bus Monitor Terminal (MT) and a Remote Terminal (RT). Any combination of the contained 1553 functions can be enabed for concurrent operation. The enabled terminals communicate with the MIL-STD-1553 buses through a shared on-chip dual bus transceiver and external transformers. The user allocates 16K bytes of on-chip static RAM between devices to suit application requirements.
The HI-6139 communicates with the host via a 40 MHz 4-wire serial peripheral interface (SPI). Programmable interrupts provide terminal status to the host processor. Circular data buffers in RAM have interrupts for rollover and programmable “level attained”.
The HI-6139 can be configured for automatic self-initialization after reset. A dedicated SPI port reads data from an external serial EEPROM to fully configure registers and RAM and optionally start execution for any subset of one to three-terminal devices.
Software
Various software support options are available for the HI-6139. A development kit (ADK-6139) includes low level software that demonstrates the broad features of the device. In addition, Linux and Bare Metal (ARM) Software Drivers are available.
Key Features
- MIL-STD-1553A/B/C and MIL-STD-1760 compliant
- Complies with SAE AS15531A and STANAG 3838
- Concurrent multi-terminal operation for one to three MIL-STD-1553B functions: BC, MT and/or RT
- Optional MIL-STD-1553A operation
- Third Party RT Validated
- 8K x 17-bit words internal static RAM with parity
- Autonomous terminal operation requires minimal host intervention
- 40 MHz SPI Host Interface
- MIL-STD-1760 option sets Busy bit in Status Word response during initialization
- World’s smallest MIL-STD-1553 terminal, QFN package measures just 6mm x 6mm
- Fully programmable Bus Controller with 28 op code instruction set
- Simple Monitor Terminal (SMT) Mode records commands and data separately, with 16-bit or 48-bit time tagging
- Independent 16-bit time tag counters and clock sources for all modes. The Bus Controller and Monitor also have 32- and 48-bit time count options, respectively
- 64-Word Interrupt Log Buffer queues the most recent 32 interrupts. Hardware-assisted interrupt decoding quickly identifies interrupt sources
- Built-in self-test for protocol logic, digital signal paths and internal RAM
- Optional self-initialization at reset uses external serial EEPROM
- ±8kV ESD Protection (HBM, all pins)
- Two temperature ranges: -40°C to +85°C, or -55°C to +125°C with optional burn-in
- RoHS compliant and Tin / Lead options available
Need help selecting the right solution?
Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.
Technical Specifications
| Release Date | 2022 |
|---|---|
| Applications |
|
Downloads
| Datasheet | Click to view Datasheet (PDF) |
|---|
