Holt Integrated Circuits
HI-8450PST
SKU: HI-8450PST
HI-8450 Series ARINC 429 Line Receiver
Key Features
- Internal lightning protection circuitry ensures compliance with RTCA/DO-160G, Section 22 Level 3 Pin Injection Test Waveform Set A (3 & 4), Set B (3 & 5A) and Set Z (3 & 5B)
- Direct connection to ARINC 429 bus with no external components
- 3.3V or 5.0V single supply operation
- Test inputs bypass analogue inputs and force digital outputs to a One, Zero, or state (HI-8454 only)
- Industrial and Extended temperature ranges
- Burn-in available
Need help selecting the right solution?
Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.
Technical Specifications
| Temperature Range | -55°C to +125°C |
|---|---|
| RoHS | No |
| Applications |
|
| Flow | T |
| Moisture Sensitivity Level | 1 |

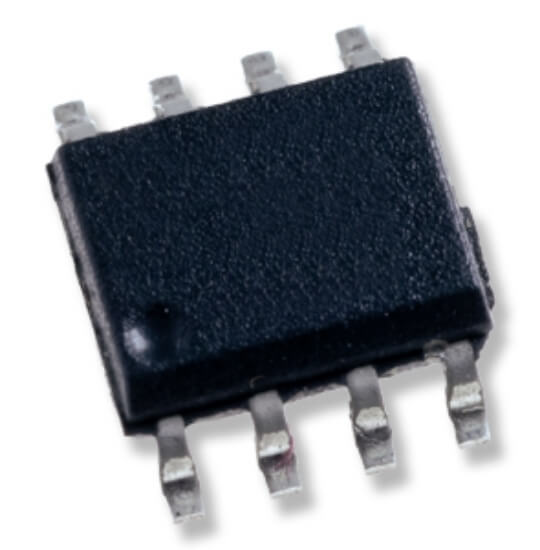

| Package Description | 8 Pin Plastic SOIC - NB |
| Product Longevity | > 10 years |
| Theta JA C W | 81.6 |
| Theta JB C W | 50.3 |
Downloads
| Datasheet | Click to view Datasheet (PDF) |
|---|
