Holt Integrated Circuits
HI-8458PSTF
SKU: HI-8458PSTF
HI-8458 Series ARINC 429 Line Receiver
Holt?s family of octal ARINC 429 line receivers, HI-8456, HI-8457 and HI-8458 include internal lightning protection circuitry which ensures compliance with RTCA/DO-160G, Section 22 Level 3 Pin Injection Test Waveform Set A (3 & 4), Set B (3 & 5A) and Set Z (3 & 5B) without the use of any external components. Each device contains 8 independent ARINC 429 line receivers.
Key Features
- Internal lightning protection circuitry ensures compliance with RTCA/DO-160G, Section 22 Level 3 Pin Injection Test Waveform Set A (3 & 4), Set B (3 & 5A) and Set Z (3 & 5B)
- Direct connection to ARINC 429 bus with no external components
- High input common mode voltage range of ±30V
- Non-annunciated fault protection; a receiver will reject a signal when either bus line is open or shorted to ground.
- Eight independent ARINC 429 line receivers
- 3.3V or 5.0V single supply operation
- Test inputs bypass analogue inputs and force digital outputs to ZERO, ONE or states (not available on HI-8457)
- Industrial & extended temperature ranges
- Burn-in available
Need help selecting the right solution?
Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.
Technical Specifications
| Temperature Range | -55°C to +125°C |
|---|---|
| RoHS | Yes |
| Applications |
|
| Flow | T |
| Moisture Sensitivity Level | 3 |

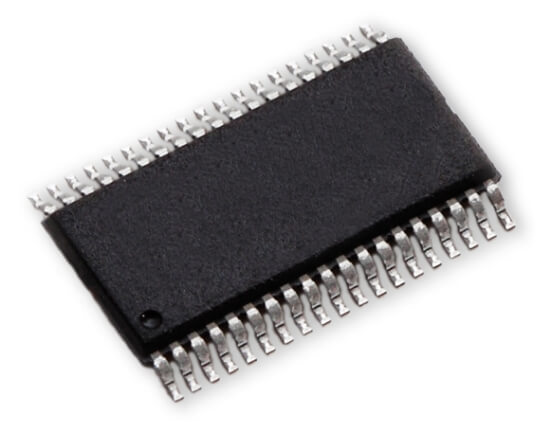

| Package Description | 38 Pin Plastic TSSOP |
| Product Longevity | > 10 years |
| Theta JA C W | 59.2 |
| Theta JB C W | 41.7 |
Downloads
| Datasheet | Click to view Datasheet (PDF) |
|---|
