Holt Integrated Circuits
HI-8477PQIF
SKU: HI-8477PQIF
HI-8477 Series ARINC 429 Line Receiver
The HI-8477 / HI-8478 are ARINC 429 Receivers designed specifically for use without a microprocessor. All configuration and control is programmed via logic level input pins, eliminating the need for a microprocessor or software interface and greatly reducing or eliminating the cost associated with software certification.
Key Features
- Pin programmable - requires no MCU or software control
- No need for certification to RTCA DO-178B, “Software Considerations in Airborne Systems and Equipment
- Robust CMOS Silicon-on-Insulator (SOI) technology
- On-chip ARINC 429 Line Receiver
- 3.3 V or 5.0V single supply operation
- Maskable Label Filtering for single label or groups of labels
- Internal lightning protection circuitry for receiver inputs allows compliance with RTCA/DO-160G, Section 22 Level 3 Pin Injection Tests using only two external resistors
- HI-8478 option provides the compliment of HI-8477 digital outputs from the 32-bit ARINC 429 word.
- Certifiable to RTCA DO-254, “Design Assurance for Airborne Electronic Hardware”
Need help selecting the right solution?
Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.
Technical Specifications
| Temperature Range | -40°C to +85°C |
|---|---|
| RoHS | Yes |
| Applications |
|
| Flow | I |
| Moisture Sensitivity Level | 3 |

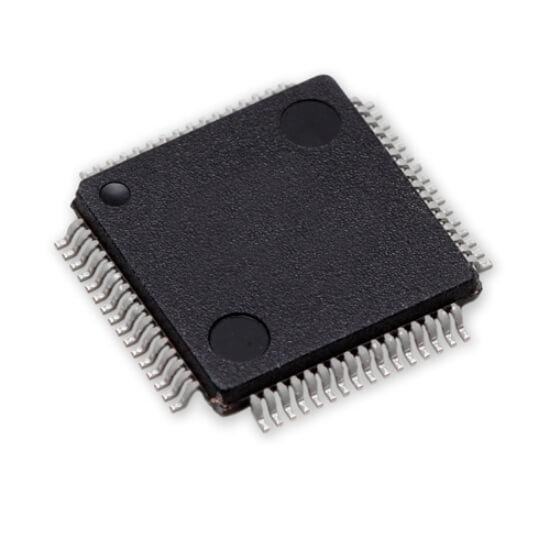

| Package Description | 64 Pin Plastic Thin Quad Flat Pack (TQFP) |
| Product Longevity | > 10 years |
Downloads
| Datasheet | Click to view Datasheet (PDF) |
|---|
