Holt Integrated Circuits

HI-8503PSM

SKU: HI-8503PSM

HI-8503 Series Line Driver

Holt Integrated Circuits HI-8503PSM

The HI-8500 family is a full-featured ARINC 429 Line Driver providing three choices of output resistance and a tri-state option, which allows the outputs to be put in a high-impedance state while powered on or off.

Key Features

  • Tri-state outputs
  • 8kV ESD tolerance
  • 0, 10 or 37.5 Ohm output resistance
  • Wide power supply range
  • Digital slew-rate control
  • DO-254 Certifiable
  • Drop-in alternatives to DEI1070A - DEI1075A, DEI1170A and DEI1171A
  • 20-pin, 5mm x 5mm QFN package available
  • Lead-free / RoHS compliant options available
  • Industrial & extended temperature ranges
  • Burn-in available

Need help selecting the right solution?

Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.

Contact an Expert

Technical Specifications

Temperature Range -55°C to +125°C
RoHS No
Applications
  • Avionics Data Communication
  • CMOS/TTL to ARINC Level Conversion
  • CMOS/TTL to RZ & NRZ Level Conversion
Burn In Yes
Flow M
Moisture Sensitivity Level 1

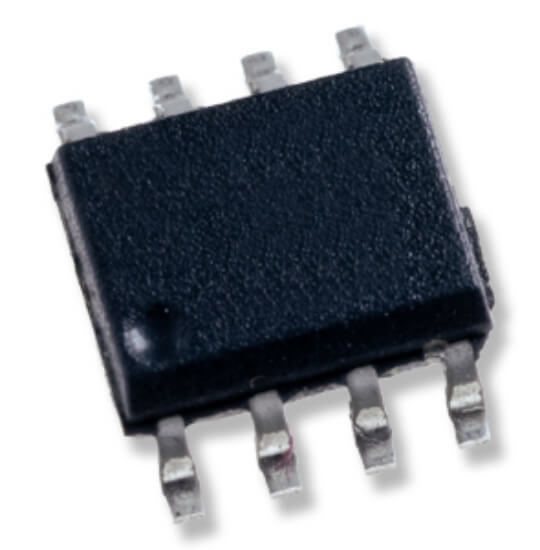

Package Description 8 Pin Plastic ESOIC - NB
Theta JA C W 44
Theta JB C W 24.3

Downloads

Datasheet Click to view Datasheet (PDF)
