Holt Integrated Circuits
HI-8588
SKU: HI-8588
5V operation. Self-test mode with tri-state outputs. Compact SO-8 package.

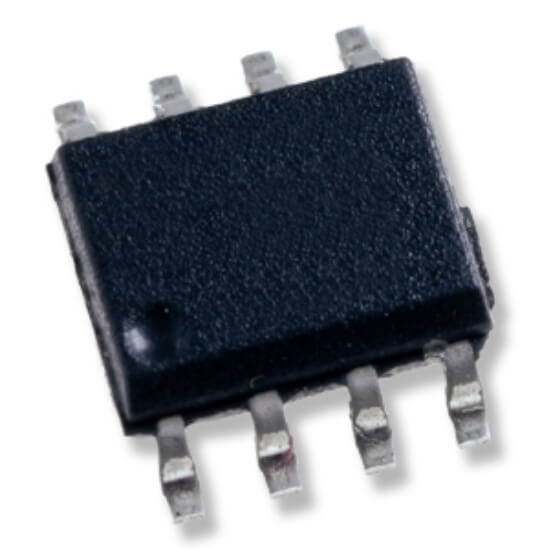

The HI-8588 is an ARINC 429 bus interface receiver and is available in a SO 8 pin package. The technology is analog/digital CMOS. The circuitry requires only a 5 volt supply.
Please refer to the HI-8588-10 for applications where an external resistance in series with the ARINC inputs is required for lightning protection or when the digital outputs need to be a logic zero rather than open circuit when TESTA and TESTB are both high.
Key Features
- ARINC 429 Line Receiver Interface in a Small Outline Package
- Receiver Input Hysteresis at Least 2 Volts
- Test Inputs That Bypass Analog Input and Can Power Down and Tri-State Outputs
- Plastic and Ceramic Package Options - Surface Mount and DIP
- Industrial & Extended Temperature Ranges Available
Need help selecting the right solution?
Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.
Technical Specifications
| Release Date | 1999 |
|---|---|
| Applications |
|
Downloads
| Datasheet | Click to view Datasheet (PDF) |
|---|
