LANTIME M200
Compact NTP Time Server with integrated Reference Clock
Meinberg LANTIME M200 time servers can be installed to provide accurate time to small and medium-sized computer networks. This entry-level time server synchronises all systems either NTP or SNTP compatible utilising a built-in MEINBERG radio clock as its primary reference time source. A stable and precise oscillator is capable of bridging interferences or a temporary loss of reception.
A large LC display shows the state of the internal receiver and the NTP subsystem. Three LEDs (green/red) indicate the status of the three main components: Reference Time (e.g. GPS), Time Synchronisation Service (NTP) and Network (Link status). A fourth red LED is labelled ALARM and can be configured to signal any event that is covered by the notification handling routines.
The configuration of the system can be done by using a standard web browser for accessing the extensive but straightforward HTML interface. Alternatively, a text-based and menu-driven setup utility can be started from the shell prompt after logging into the unit via Telnet or SSH.
The LANTIME M200 is equipped with a high-precision “TCXO” oscillator (please check oscillator options for technical specifications). The oscillator determines the holdover characteristics (e.g. when the signal is disturbed or jammed).
Key Features
- Selectable Reference Sources:
- GPS: Satellite receiver for the Global Positioning System
- GNS: Combined GPS/GLONASS/Galileo/BeiDou satellite receiver (L1 frequency band), can also be used for mobile applications
- GNS-UC: GPS and Galileo Satellite Receiver with Up-Converter for Meinberg GPS Antenna/Converter
- PZF: DCF77 correlation receiver for middle Europe
- MSF: Long wave receiver for Great Britain
- WWVB: Long wave receiver for the US time signal
- Synchronisation of NTP and SNTP compatible clients
- Web-based status and configuration interface and console-based graphical configuration utility
- Supported net protocols: IPv4, IPv6, NTP, (S)NTP, DAYTIME, DHCP, HTTP, HTTPS, FTP, SFTP, SSH, SCP, SYSLOG, SNMP, TIME, TELNET
- Alert-Notification system of status change by Email, WinMail, SNMP or an external connected display
- Full SNMP v1,v2,v3 support with own SNMP-daemon for status and configuration and SNMP Trap messages
- USB Port for installing firmware updates, locking front panel menu access and backup/restore of configuration and log files
- Meinberg GPS Antenna/Converter Unit connected with up to 300m of standard coaxial cable RG58
Need help selecting the right solution?
Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.
Technical Specifications

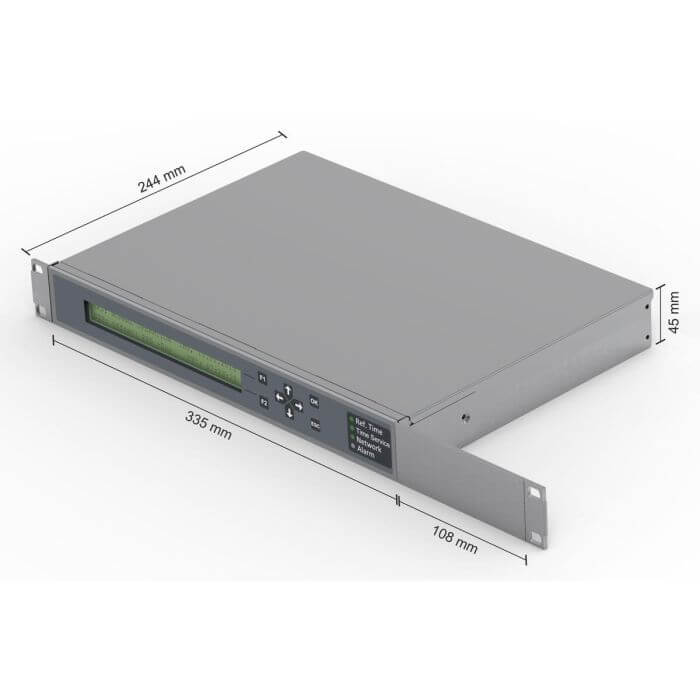

| Dimensions | 335 x 45 x 240mm |
|---|---|
| Operating Temperature | 0 - 50°C |
| RoHS | Yes |
| CPU |
|
| Display | LC-display, 2 x 40 characters, with backlight |
| Form Factor | Desktop housing |
| USB Ports | 1x USB Port in front panel:
|
| Power Consumption | 20W |
| Power Supply | Standard: 100-240 V AC (50/60 Hz) / 100-200 V DC
100-200 V DC, 24 V DC and 24-48 V DC Redundant power supply combinations are also available. |
| Control Elements | Eight push buttons to set up basic network parameters and to change receiver settings |
| Daytime Protocol (DAYTIME) | Daytime Protocol (RFC 867) |
| Firmware Updates | Firmware is field-upgradeable, updates can be installed directly from the unit or via a remote network connection. Software updates are provided free of charge for the lifetime of your Meinberg product. |
| Further Information | A large LC display shows the state of the internal receiver and the NTP subsystem. Three LEDs (green/red) indicate the status of the three main components: Reference Time (e.g. GPS), Time Synchronisation Service (NTP) and Network (Link status). A fourth red LED is labelled ALARM and can be configured to signal any event that is covered by the notification handling routines.
The configuration of the system can be done by using a standard web browser for accessing the extensive but straightforward html interface. Alternatively a text based and menu driven setup utility can be started from the shell prompt after logging into the unit via Telnet or SSH. The LANTIME M200 is equipped with a high precision "TCXO" oscillator (please check our oscillator options page for technical specifications). The oscillator determines the holdover characteristics (e.g. when the signal is disturbed or jammed). |
| Hypertext Transfer Protocol (HTTP) | HTTP/HTTPS (RC 2616) |
| IEC 61850 | Synchronisation of IEC 61850 compliant devices by using SNTP |
| Internet Protocol (IP) |
|
| Network Interface | RJ-45 Network Connection 10/100 Mbit |
| Network Autoconfiguration Support |
|
| Network Interface | RJ-45 Network Connection 10/100 Mbit |
| Network Protocols OSI Layer 4 Transport Layer |
|
| Network Protocols OSI Layer 7 Application Layer |
|
| Network Time Protocol (NTP) |
|
| Operating System of the SBC | Linux with nano kernel (incl. PPSkit) |
| Relative Humidity | Max. 85% |
| Scope of Supply | Included in delivery is a Meinberg outdoor antenna incl. mounting kit, pre-assembled antenna cable (except MRS, TCR and RDT models) and product documentation on USB storage. |
| Secure Shell SSH |
|
| Status Info | Four bicolour LEDs showing the status of:
|
| Technical Support | Meinberg offers free lifetime technical support via telephone or e-mail. Additionally, APC's own team of time synchronisation specialists are available for first line technical support. |
| Telnet | Telnet (RFC 854-RFC 861) |
| Time Protocol (TIME) | Time Protocol (RFC 868) |
| WEEE Status of the Product | This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. |
