Meinberg

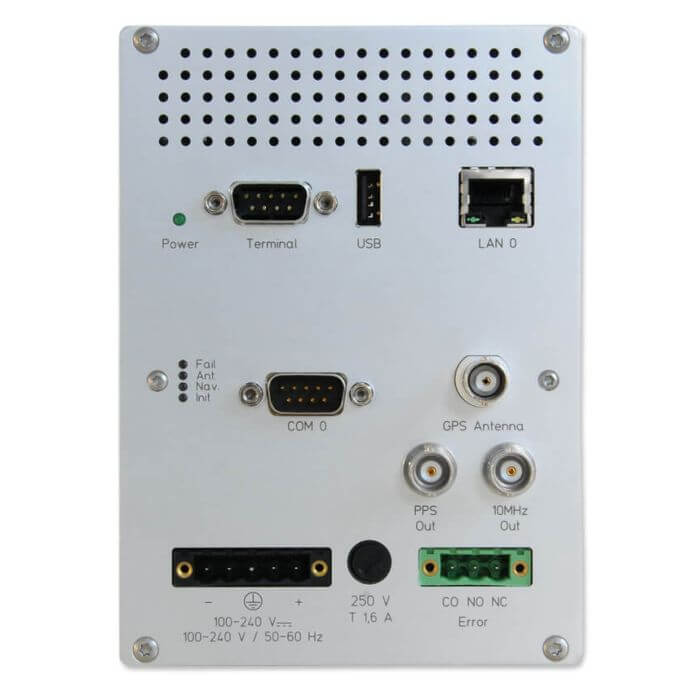

LANTIME M400

SKU: LANTIME M400

Rail Mount NTP Time Server with Meinberg reference receiver

The LANTIME M400 Time Server offers unparalleled flexibility and versatility and provides accurate time to your network in a compact and full-featured DIN railmount package for industrial applications such as power generation, transmission and distribution (substation automation), process control and industrial automation systems. The M400 includes an LC-Display and keypad and an extremely broad range of available options.

The LANTIME M400 is available with an integral receiver as well as an IRIG timecode reader and can be customized with a lot of different options to deliver exactly the feature set that is required for a certain application/environment.

Ultra-compact Form Factor

The ultra-compact form factor enables this product to become the ideal time and frequency source in installations where every millimetre counts. With up to 5 network ports, this NTP appliance offers the highest port density.

Simple System Configuration

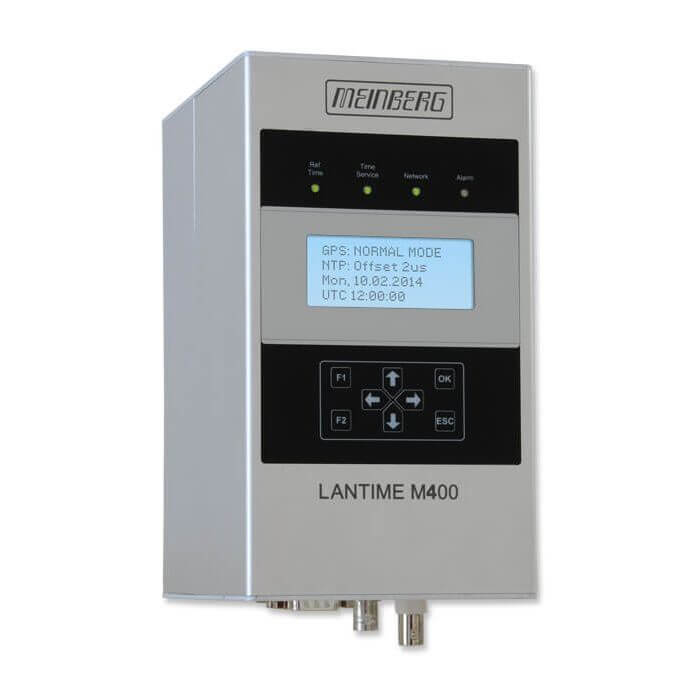

As with most LANTIME M-Series models, a large LC-Display showing the state of the internal GPS receiver and the NTP/PTP subsystem is combined with three bicolour LEDs (green/red) that indicate the status of the three main components: Reference Time (e.g. GPS or GLONASS), Time Synchronisation Service (NTP/PTP) and Network (Link status). A fourth red LED is labelled ALARM and can be configured to signal any event that is covered by the notification handling routines.

Oscillator Options

The LANTIME M400 GPS is equipped with a high precision oscillator “TCXO” (look at oscillator options for details). The oscillator determines the holdover characteristics (e.g. when a reference source signal like GPS is disturbed or jammed). For applications with higher stability/holdover requirements, there are several oscillator options available (up to “OCXO HQ”).

Modular System Architecture

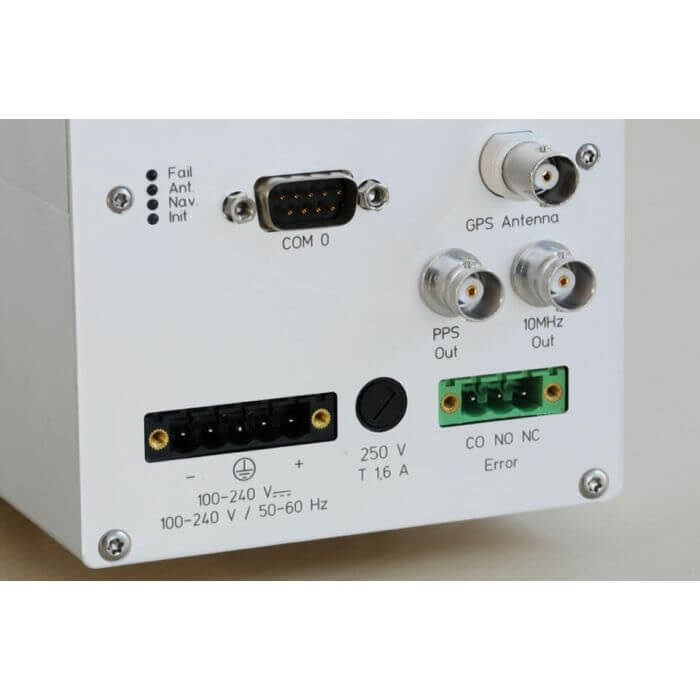

Because of its modular system architecture, it is possible to equip a LANTIME M400 time server with a number of different reference time sources. Optionally several additional frequency, serial string and pulse outputs are available as well as power supplies for additional input voltage ranges.

In addition to the standard electrical interfaces, a lot of output signals can be delivered on optical ports, too.

Key Features

Selectable Reference Sources:
- GPS: Satellite receiver for the Global Positioning System
- GNS: Combined GPS/GLONASS/Galileo/BeiDou satellite receiver (L1 frequency band), can also be used for mobile applications
- PZF: DCF77 correlation receiver for middle Europe
- MSF: Long wave receiver for Great Britain
- WWVB: Long wave receiver for the US time signal
- TCR: Time code receiver for IRIG A/B, AFNOR or IEEE1344 codes
- MRS: (GPS, PPS, 10MHz, NTP): Multi Reference Source - several reference sources, adjustable following priority of signal
Synchronisation of NTP and SNTP compatible clients
Web-based status and configuration interface and console-based graphical configuration utility
Supported net protocols: IPv4, IPv6, NTP, (S)NTP, DAYTIME, DHCP, HTTP, HTTPS, FTP, SFTP, SSH, SCP, SYSLOG, SNMP, TIME, TELNET
Alert-Notification system of status change by Email, WinMail, SNMP or an external connected display
Full SNMP v1,v2,v3 support with own SNMP-daemon for status and configuration and SNMP Trap messages
USB Port for installing firmware updates, locking front panel menu access and backup/restore of configuration and log files
Meinberg GPS Antenna/Converter Unit connected with up to 300m of standard coaxial cable RG58
Meinberg's LANTIME time server is available with a variety of additional output options: IRIG Time Code, frequency synthesizer and programmable pulse outputs illustrate some of the many expansion options for your NTP server
Up to 5 Network Interfaces

Need help selecting the right solution?

Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.

Contact an Expert

Technical Specifications

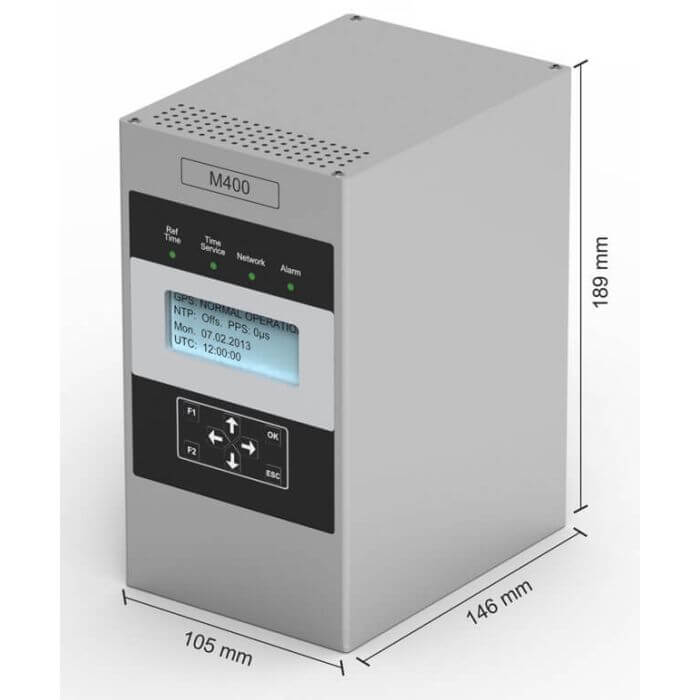

Dimensions	105 x 189 x 146mm
Operating Temperature	0 - 50°C
RoHS	Yes
CPU	AMD Geode™ LX 800 (500 MHz, 128 KB L2 cache, 3.6 W) Main Memory: 256 MByte onboard Flash Disk: 1 GB
Display	LC-Display, 4 x 16 characters
Form Factor	Fischer aluminium housing for DIN mounting rail
Interface	Single serial RS-232 interface (no serial interface in case of an internal time code receiver).
USB Ports	1x USB Port in front panel: Install firmware upgrades Backup and restore configuration files Copy security keys Lock/unlock front keys
Power Consumption	30W
Power Supply	Standard: 100-240 V AC (50/60 Hz) / 100-200 V DC Optional DC variants: 100-200 V DC, 24 V DC and 24-48 V DC Redundant power supply combinations are also available.
Accuracy of Pulse Outputs	Depends on the oscillator option: < ±100ns (TCXO, OCXO LQ) < ±50ns (OCXO SQ, OCXO MQ, OCXO HQ, OCXO DHQ)
Alarm Output	Synchronous state of the module, relay output (changeover contact)
Control Elements	Eight push buttons to set up basic network parameters and to change receiver settings
Data Format of Interfaces	COM 0: Baudrate: 300, 600, 1200, 2400, 4800, 9600, 19200 Baud Data Format: 8E1, 8E2, 8N1, 8N2, 8O1, 7E1, 7E2, 7N2, 7O1, 7O2 Time Telegram: Meinberg Standard-Telegram , SAT, NMEA RMC, Uni Erlangen (NTP), COMPUTIME, Sysplex, Capture-Telegramm, SPA, RACAL, Meinberg GPS, NMEA GGA, NMEA RMC GGA, NMEA ZDA, ION, 6021 or IRIG-J
Daytime Protocol (DAYTIME)	Daytime Protocol (RFC 867)
Firmware Updates	Firmware is field-upgradeable, updates can be installed directly from the unit or via a remote network connection. Software updates are provided free of charge for the lifetime of your Meinberg product.
Frequency Outputs	10 MHz via female BNC connector, TTL into 50 Ohm. Accuracy depends on the oscillator (standard: TCXO).
Further Information	The LANTIME M400 is available with an integral receiver as well as an IRIG timecode reader and can be customized with a lot of different options to deliver exactly the feature set that is required for a certain application/environment. Ultra compact Form Factor The ultra compact form factor enables this product to become the ideal time and frequency source in installations where every millimetre counts. With up to 5 network ports, this NTP appliance offers highest port density. Simple System Configuration As with most LANTIME M-Series models, a large LC-Display showing the state of the internal GPS receiver and the NTP/PTP subsystem is combined with three bicolour LEDs (green/red) that indicate the status of the three main components: Reference Time (e.g. GPS or GLONASS), Time Synchronisation Service (NTP/PTP) and Network (Link status). A fourth red LED is labelled ALARM and can be configured to signal any event that is covered by the notification handling routines. Oscillator Options The LANTIME M400 GPS is equipped with a high precision oscillator "TCXO" (look at oscillator options for details). The oscillator determines the holdover characteristics (e.g. when a reference source signal like GPS is disturbed or jammed). For applications with higher stability/holdover requirements there are several oscillator options available (up to "OCXO HQ"). Modular System Architecture Because of its modular system architecture it is possible to equip a LANTIME M400 time server with a number of different reference time sources. Optionally several additional frequency-, serial string- and pulse outputs are available as well as power supplies for additional input voltage ranges. In addition to the standard electrical interfaces a lot of output signals can be delivered on optical ports, too.
Hypertext Transfer Protocol (HTTP)	HTTP/HTTPS (RC 2616)
IEC 61850	Synchronisation of IEC 61850 compliant devices by using SNTP
Internet Protocol (IP)	IPv4 IPv6
Network Interface	1 x 10/100 MBit with RJ45 (up to 4 additional LAN interfaces possible)
Network Autoconfiguration Support	IPv4: Dynamic Host Configuration Protocol - DHCP (RFC 2131) IPv6: Dynamic Host Configuration Protocol - DHCPv6 (RFC 3315) and Autoconfiguration Networking - AUTOCONF (RFC 2462)
Network Interface	1 x 10/100 MBit with RJ45 (up to 4 additional LAN interfaces possible)
Network Protocols OSI Layer 4 Transport Layer	TCP UDP
Network Protocols OSI Layer 7 Application Layer	Telnet FTP SSH (including SFTP, SCP) HTTP HTTPS syslog SNMP
Network Time Protocol (NTP)	NTP v2 (RFC 1119), NTP v3 (RFC 1305), NTP v4 (RFC 5905) SNTP v3 (RFC 1769), SNTP v4 (RFC 4330) MD5 / SHA-1 authentication and autokey key management
Operating System of the SBC	Linux with nano kernel (incl. PPSkit)
Parallel Redundancy Protocol (PRP)	PRP (IEC 62439-3)
Pulse Outputs	Pulse Per Second (PPS), TTL level, pulse width: 200ms
Relative Humidity	Max. 85%
Scope of Supply	Included in delivery is a Meinberg outdoor antenna incl. mounting kit, pre-assembled antenna cable (except MRS, TCR and RDT models) and product documentation on USB storage.
Secure Shell SSH	SSH v1.3 SSH v1.5 SSH v2 (OpenSSH)
Simple Network Management Protocol (SNMP)	SNMPv1 (RFC 1157) SNMPv2c (RFC 1901-1908) SNMP v3 (RFC 3411-3418)
Status Info	Four bicolour LEDs showing the status of: Reference time Time service Network Alarm
Supported Time String Formats	Meinberg Standard Timestring Uni Erlangen Timestring SYSPLEX Timer NMEA Computime ABB-SPA SAT Arbiter
Technical Support	Meinberg offers free lifetime technical support via telephone or e-mail. Additionally, APC's own team of time synchronisation specialists are available for first line technical support.
Telnet	Telnet (RFC 854-RFC 861)
Time Protocol (TIME)	Time Protocol (RFC 868)
WEEE Status of the Product	This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself.
