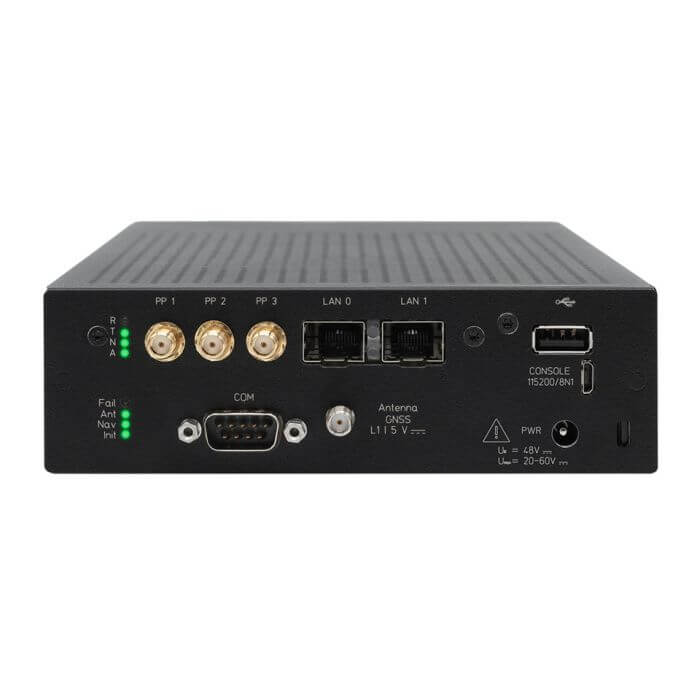

microSync XS
Ultra-Compact NTP Server and PTP Clock
The microSyncXS is a fully-featured GNSS-synchronized NTP & PTP time server. With two PTP-capable network ports operable either in timeTransmitter or timeReceiver mode, the microSyncXS is operable as a high-accuracy grandmaster, boundary clock or ordinary clock.
Naturally, the microSyncXS is also a powerful NTP server and programmable clock signal generator, capable of producing a wide variety of reference signals via three programmable pulse outputs (e.g. PPS, 10 MHz, DCLS timecode).
Providing two IEEE 1588 ports, the microSyncXS models are powerful GNSS-synchronized PTP Grandmasters offering a high level of accuracy. With full support for practically every published PTP profile, including the SMPTE 2059-2 Profile and AES67 Media Profile, the microSyncXS is perfect as an ultra-compact PTP Grandmaster solution for outside broadcasting vans and other situations where space is at a premium.
Equipped with a fully-featured version of the powerful, synchronization-centric meinbergOS operating system, the microSyncXS offers up all of the security and flexibility that the microSync family is known for. These include the new features introduced in the latest meinbergOS versions, specifically LDAP, TACACS+, and RADIUS authentication, native PRP for NTP and PTP traffic, industry-specific network functionality such as IEC 61850 MMS support, detailed analysis features for GNSS reception and clock performance, and also a fully integrated version of Meinberg’s PTP monitoring solution, PTP Track Hound.
Key Features
- Selectable Reference Time Sources:
- GPS: Satellite receiver for the GPS constellation (using Meinberg's downconverter technology for reliable GNSS signal transmission over long distances)
- Recommended for fixed-site applications - GNS-UC: Satellite receiver for the GPS and Galileo constellations (using Meinberg's downconverter technology for reliable GNSS signal transmission over long distances)
- Recommended for both fixed-site and mobile applications - GNS: Multi-GNSS satellite receiver with support for all four of the main constellations: GPS, GLONASS, Galileo, and BeiDou
- Recommended for both fixed-site and mobile applications
- GPS: Satellite receiver for the GPS constellation (using Meinberg's downconverter technology for reliable GNSS signal transmission over long distances)
- Powerful NTP and IEEE 1588 Time Server
- meinbergOS Web interface for configuration and status monitoring
- Wide varity of programmable pulse outputs
- Ultra compact and space-efficient time server solution
- Option: OLED display for fast initial start of operation and status indication
- All microSync models offer a wide range of multiple output signals, allowing devices to be synchronized over a network via NTP or PTP or directly "on the wire" using a variety of electrical and optical signals.
Need help selecting the right solution?
Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.
Technical Specifications
| Weight | 1.35 kg (2.98 lbs) |
|---|---|
| Storage Temperature | -30 °C to 70 °C (-22 °F to 158 °F) |
| RoHS | Yes |
| Compliances |
|
| IP Rating | IP30 |
| Form Factor | Housing Type 6.33 inch, desktop, 1U |
| Interface | Single serial RS-232 interface |
| USB Ports | USB Type-A, usable for the following purposes:
|
| Operating Voltage | 20 V - 60 V DC |
| Power Consumption | typ. 16.5 W |
| Atmospheric Pressure | 540 to 1,600 hPa |
| Network Interface | 2x SFP (LAN 0, LAN 1) Gigabit Ethernet (GbE), 10/100/1000 Mbit, RJ45 or 1000FX (SFP) |
| Network_Protocols | IPv4, IPv6 |
| Operating Altitude | Up to 5,000 m (16,404 ft) above sea level |
| Operating Mode |
|
| SMA Connectors | 3 x SMA connectors for different programmable pulses outputs (PPS, PPM, PPH, TC DCLS, PTTI 1PPS ...) |
| Supported Hummidity | 5 % to 95 % at 40 °C, non-condensing |
| Supported Temperature | -20 °C to 55 °C (-4 °F to 131 °F) |
| Network Interface | 2x SFP (LAN 0, LAN 1) Gigabit Ethernet (GbE), 10/100/1000 Mbit, RJ45 or 1000FX (SFP) |
| Network Protocols | IPv4, IPv6 |
| Operating Mode |
|
| Oscillator Options | OCXO SQ OCXO HQ |
| Supported PTP Profiles | Default Profiles: Power Profiles: Telecom Profiles: Broadcast Profiles: AVB/TSN: Automotive Profile: |
| WEEE Status of the Product | This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself. |
