Holt Integrated Circuits
HI-15530PSIF
SKU: HI-15530PSIF
HI-15530 Series MIL-STD-1553 CMOS Encoder and Decoder
The HI-15530 is a high performance CMOS integrated circuit designed to meet the requirements of MIL-STD-1553 and similar Manchester II encoded, time division multiplexed serial data protocols. The HI-15530 contains both an Encoder and Decoder that operate independently. It is fully compatible with either 5V or 3.3V logic and transceivers.
Key Features
- Compliant to MIL-STD-1553
- 5V or 3.3V operation
- Interfaces to HI-1567 transceiver family

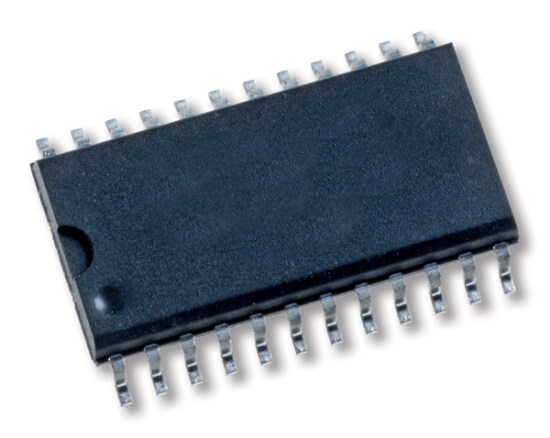

- Small footprint 24-Pin plastic SOIC package option
- Manchester II Encode and Decode
- Sync identification and Lock-in
- Clock recovery
- Industrial & Extended Temperature Ranges Available
- Direct replacement for Harris HD15530, GEC Plessey Semiconductors MAS15530 and Aeroflex ACT15530
Need help selecting the right solution?
Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.
Technical Specifications
| Temperature Range | -40°C to +85°C |
|---|---|
| RoHS | Yes |
| Applications |
|
| Flow | I |
| Moisture Sensitivity Level | 1 |
| Package Description | 24 Pin Plastic SSOP |
| Product Longevity | > 10 years |
| Theta JA C W | 44.35 |
Downloads
| Datasheet | Click to view Datasheet (PDF) |
|---|
