Holt Integrated Circuits
HI-35850PQM
SKU: HI-35850PQM
HI-3585 Series ARINC 429 Protocol IC with SPI Interface
The HI-35850 from Holt Integrated Circuits is a silicon gate CMOS device for interfacing a Serial Peripheral Interface (SPI) enabled microcontroller to the ARINC 429 serial bus.?It is a drop-in replacement for Holt?s popular HI-3585, with a much improved SPI of 12 MHz. In addition, a new SPI Opcode (0x09) has been added to read multiple messages from the receive FIFO. This greatly improves host efficiency over the previous device.
Key Features
- ARINC specification 429 compliant
- 3.3V or 5.0V logic supply operation
- Drop-in replacement for Holt’s HI-3585 with improved SPI host interface (12 MHz)
- Read multiple receive FIFO messages with a single SPI Opcode (New)
- On-chip analogue line driver and line receiver connect directly to the ARINC 429 Bus
- Programmable label recognition for 256 labels
- 32 x 32 Receive FIFO and 32 x 32 Transmit FIFO
- Independent data rates for Transmit and Receive
- High-speed, four-wire, 12 MHz SPI
- Label bit-order control
- 32nd transmit bit can be data or parity
- Self test mode
- Low power
- Industrial and extended temperature ranges available
Need help selecting the right solution?
Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.
Technical Specifications
| Temperature Range | -55°C to +125°C |
|---|---|
| RoHS | No |
| Applications |
|
| Flow | M |
| Moisture Sensitivity Level | 3 |

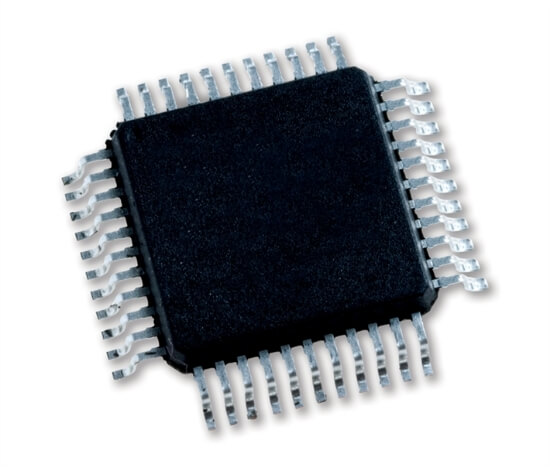

| Package Description | 44 Pin Plastic Quad Flat Pack (MQFP) |
| Product Longevity | > 10 years |
| Theta JA C W | 33.49 |
| Theta JB C W | 25.44 |
Downloads
| Datasheet | Click to view Datasheet (PDF) |
|---|
