HI-4854CRI
HI-4854 Series slew rate controlled 485/422 and ISO 8482 compliant transceiver IC
The HI-4854 is a slew-rate controlled TIA-485/TIA-422-B and ISO 8482:1993 compliant transceiver. The device can operate over an extended power-supply range (3.0V to 5.5V) and wide common mode voltage range (-15V to +20V). The HI-4854 has a full-duplex configuration, with slew rate optimized for data rates up to 20 Mbps. The driver slew-rate control and pre-emphesis reduces high-frequency components in the output signal transitions along with compensating for impedance mismatch. These features provide optimum EMI and jitter performance essential in EMI sensitive environments and high-integrity data link applications such as industrial automation.
Need help selecting the right solution?
Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.
Technical Specifications
| Temperature Range | -40°C to +85°C |
|---|---|
| RoHS | No |
| Applications |
|
| Flow | I |

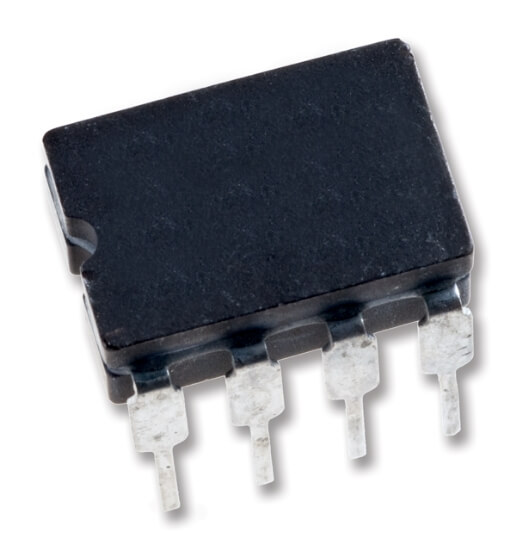

| Package Description | 8 Pin CerDIP |
| Product Longevity | > 10 years |
Downloads
| Datasheet | Click to view Datasheet (PDF) |
|---|
