Holt Integrated Circuits
HI-8460PCI
SKU: HI-8460PCI
HI-8460 Series ARINC 429 Line Receiver
Key Features
- 800V galvanic isolation between the line receiver and logic interface exceeds Airbus ABD0100 specification requirement
- Drop-in compatible with Holt HI-8450/51, HI-8588 and HI-8591
- Internal lightning protection circuitry ensures compliance with RTCA/DO-160G, Section 22 Level 3 Pin Injection Test Waveform Set A (3 & 4), Set B (3 & 5A) and Set Z (3 & 5B)
- Direct connection to ARINC 429 bus with no external components
- 3.3V single supply operation
- Test inputs bypass analogue inputs and force digital outputs to a One, Zero, or state
- Industrial and Extended temperature ranges
- Burn-in available
Need help selecting the right solution?
Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.
Technical Specifications
| Temperature Range | -40°C to +85°C |
|---|---|
| RoHS | No |
| Applications |
|
| Flow | I |
| Moisture Sensitivity Level | 3 |

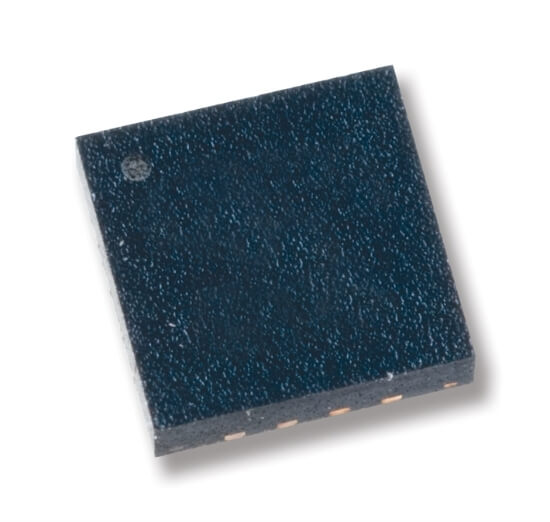

| Package Description | 16 Pin 4mm x 4mm Plastic Chip Scale (QFN) |
| Product Longevity | > 10 years |
| Theta JA C W | 55.1 |
| Theta JB C W | 38.5 |
Downloads
| Datasheet | Click to view Datasheet (PDF) |
|---|
