Ultra-Versatile Platform for Telecom Synchronisation Application

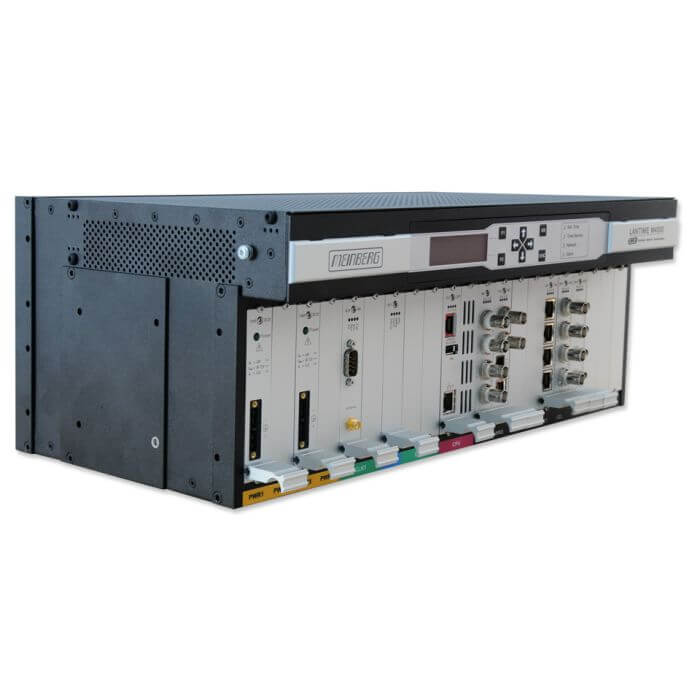

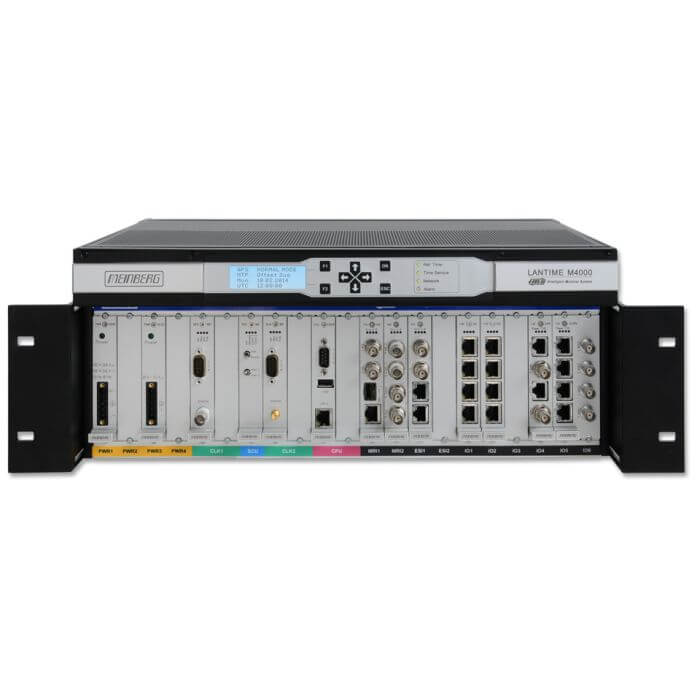

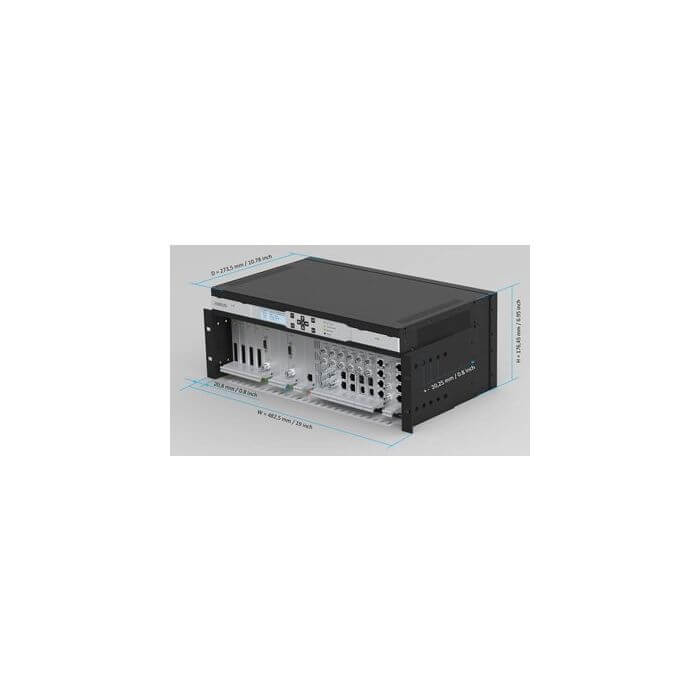

The Meinberg LANTIME M4000 has been designed to fulfil the Synchronisation requirements of modern 4G/5G/LTE networks. It is capable to act as a Primary Reference Time Clock (PRTC) and, because of its unmatched flexibility, can be deployed in different scenarios. The modularity of the IMS platform (Intelligent Modular System) allows the M4000 to be configured for all areas of a mobile backhaul network: in the core, metro or access network areas.
Key Features
- GNSS (GPS, GLONASS, Galileo, BeiDou) Synchronised PRTC (compliant to ITU-T G.8272)
- Optimized for ETSI Rack (300mm / 21 inches) or 19 inch Rackmount
- Carrier Grade NTP Time Server with Hardware Time Stamping
- SyncE - Synchronous Ethernet In/Out
- Web GUI, CLI, SNMP, RADIUS, TACACS+
- GBit PTP Interface (SFP/RJ45)
- E1 / T1 Input / Output Options
- Up to 10 PTP (IEEE 1588-2008) modules
- Redundant power and receiver option (eg GPS / GLONASS combination)
- IEEE 1588 Grandmaster (multi-profile, incl. ITU-T G.8275.1 and G.8265.1)
- E1/T1 BITS and Clock In/Out (ITU-T G.703)
- 1PPS In/Out
- 10 MHz In/Out
- PTP and NTP Input
- Meinberg's LANTIME time server is available with a variety of additional output options: IRIG Time Code, frequency synthesizer and programmable pulse outputs illustrate some of the many expansion options for your NTP server
- Up to 24 additional LAN ports
- Optimized for ETSI Rack (300mm / 21 inches) or 19 inch Rackmount
Need help selecting the right solution?
Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.
Technical Specifications
| Operating Temperature | 0 ... 50°C / 32 ... 122°F |
|---|---|
| RoHS | Yes |
| CPU |
|
| Display | LC-Display, 4 x 16 characters |
| USB Ports |
|
| Accuracy of Pulse Outputs | < ±50ns (OCXO SQ, OCXO MQ, OCXO HQ, OCXO DHQ) |
| Control Elements | Eight push buttons to set up basic network parameters and to change system settings. |
| Daytime Protocol (DAYTIME) | Daytime Protocol (RFC 867) |
| Firmware Updates | Firmware is field-upgradeable, updates can be installed directly at the unit or via a remote network connection. Software updates are provided free of charge, for the lifetime of your Meinberg product. |
| Frequency Outputs | Accuracy depends on oscillator (standard: OCXO-SQ) |
| Further Information | Depending on the installed modules and the selected Synchronisation sources, the 4U rackmount LANTIME M4000 can play different roles. By supporting multiple input sources utilizing Meinberg‘s IRSA (Intelligent Reference Switching Algorithm) technology, the M4000 accepts GPS, GLONASS, Galileo. BeiDou, PTP, NTP, SyncE, 1PPS or E1/T1 as possible Synchronisation inputs to be able to act as an Edge Grandmaster Clock. IRSA is useful to bridge potential GNSS outages or, if desired, completely avoid depending on GPS / GLONASS / Galileo / BeiDou availability. A highly stable oscillator ensures a holdover period of several hours or days depending on the target application even if no synchronzation source is available anymore. Using an external PRC allows to extend the holdover capabilities to whatever level is required at a certain point in the network.
The PTP implementation support both ITU-T profiles, ITU-T G.8265.1 for frequency and ITU-T G.8275.1 for frequency and phase. This allows to provide accurate frequency and phase Synchronisation over packet networks to all network elements requiring Synchronisation, including 2G/3G/4G base stations as well as LTE advanced networks. The M4000 can act as a Telecom Grandmaster for hundreds of clients. For NTP-based Synchronisation, each of our HPS module network interfaces of the LANTIME M4000 can be configured to act as a carrier grade NTP server with 8 ns time stamp accuracy, serving up to 400,000 NTP requests per second on each port. The M4000 supports up to 40 pulse and frequency outputs like PPS, 10 MHz as well as software selectable T1 or E1 outputs to Synchronise Telecom equipment or measurement devices. The modular approach of the IMS platform allows field-replacement and hot-swap capabilities for IO modules and power supplies. This concept ensures future-proofness and expandability by allowing to add or replace modules when new technologies or interfaces are required and makes this product one of the most scalable and flexible Synchronisation solutions on the market. |
| Hypertext Transfer Protocol (HTTP) | HTTP/HTTPS (RC 2616) |
| IEC 61850 | Synchronisation of IEC 61850 compliant devices by using SNTP |
| Internet Protocol (IP) | IP v4, IP v6 |
| Network Interface |
|
| Network Autoconfiguration Support |
|
| Network Interface |
|
| Network Protocols OSI Layer 4 Transport Layer | TCP, UDP |
| Network Protocols OSI Layer 7 Application Layer | TELNET, FTP, SSH (incl. SFTP, SCP), HTTP, HTTPS, SYSLOG, SNMP |
| Network Time Protocol (NTP) |
|
| Operating System of the SBC | GNU/Linux 4.x |
| Parallel Redundancy Protocol (PRP) | PRP (IEC 62439-3) |
| Power Supply Maximum Power Range |
|
| Reference Options |
|
| Relative Humidity | Max. 85% |
| Scope of Supply | Product documentation and software on USB storage device. |
| Secure Shell SSH | SSH v1.3, SSH v1.5, SSH v2 (OpenSSH) |
| Simple Network Management Protocol (SNMP) | SNMPv1 (RFC 1157), SNMPv2c (RFC 1901-1908), SNMP v3 (RFC 3411-3418) |
| Status Info | Four bicolour LEDs showing status of: reference time, time service, network, alarm |
| Technical Support | Meinberg offers free lifetime technical support via telephone or e-mail. |
| Telnet | Telnet (RFC 854-RFC 861) |
| Time Protocol (TIME) | Time Protocol (RFC 868) |
| WEEE Status of the Product | B2B. Return to manufacturer |
