Meinberg

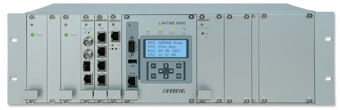

LANTIME M900/PTP
SKU: LANTIME M900/PTP
Customizable IEEE 1588 Grandmaster and NTP Server with integrated satellite receiver in modular 3U case
The LANTIME M900 is based on a 3U BGT chassis that serves as the platform for an extremely flexible and expandable time server to meet the most complex and demanding requirements.
Key Features
Selectable Reference Sources:
- GPS: Satellite receiver for the Global Positioning System
- GNS: Combined GPS/GLONASS/Galileo/BeiDou satellite receiver (L1 frequency band), can also be used for mobile applications
- MRS: (GPS, PPS, 10MHz, PTP, NTP): Multi Reference Source - several reference sources, adjustable following priority of signal
- Synchronisation of IEEE1588-2008 (PTPv2) compatible clients
- Synchronisation of NTP and SNTP compatible clients
- Web-based status and configuration interface and console-based graphical configuration utility
- Supported networking protocols: IPv4, IPv6, HTTPS, HTTP, SSH, TELNET, SCP, SFTP, FTP, SYSLOG, SNMP
- Alert-Notification system of status change by Email, WinMail, SNMP or an external connected display
- Full SNMP v1,v2,v3 support with own SNMP-daemon for status and configuration and SNMP Trap messages
- USB Port for installing firmware updates, locking front panel menu access and backup/restore of configuration and log files
- Meinberg GPS Antenna/Converter Unit connected with up to 300m of standard coaxial cable RG58
- Up to three IEEE 1588 PTPv2 interfaces, available via front panel
Need help selecting the right solution?
Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.
Technical Specifications
| Operating Temperature | 0 ... 50°C / 32 ... 122°F |
|---|---|
| RoHS | Yes |
| CPU | AMD Geode™ LX 800 (500 MHz, 128 KB L2 cache, 3.6 W)
Main Memory: onboard 256 MByte Flashdisk: 1 GB |
| Display | LC-Display, 4 x 16 characters |
| Form Factor | Rackmount 3U chassis for standard 19'' racks |
| Interface | Two independent serial RS-232-interfaces, menu configurable |
| USB Ports | 1x USB Port in front panel:
- install firmware upgrades - backup and restore configuration files - copy security keys - lock/unlock front keys |
| Power Consumption | Max. 25W with single power supply. Max. 50W with redundant power solution. |
| Power Supply | 100-240 V AC (50-60 Hz) / 100-240 V DC Redundant Power Supplies and other DC input voltage ranges available upon request |
| Accuracy of Pulse Outputs | < ±100ns (OCXO HQ, OCXO DHQ, Rubidium) |
| Alarm Output | Synchronous state of the module, relay output (changeover contact) |
| Control Elements | Eight push buttons to set up basic network parameters and to change receiver settings |
| Data Format of Interfaces | Baud rates: 300, 600, 1200, 2400, 4800, 9600, 19200 Data formats: 7N2, 7E1, 7E2, 7O1, 8E1, 8N1, 8O1 Time strings: Meinberg Standard-Telegram , SAT, Uni Erlangen (NTP), SPA, RACAL, Sysplex, NMEA0183 (RMC, GGA, ZDA), Meinberg GPS, COMPUTIME, ION oder Capture-Telegramm |
| Daytime Protocol (DAYTIME) | Daytime Protocol (RFC 867) |
| Firmware Updates | Firmware is field-upgradeable, updates can be installed directly at the unit or via a remote network connection. Software updates are provided free of charge, for the lifetime of your Meinberg product. |
| Frequency Outputs | 10 MHz via female BNC connector, TTL into 50 Ohm Accuracy depends on oscillator (standard: OCXO-HQ) |
| Further Information | The M900 can be configured with a wide variety of reference clock options, oscillator options (including rubidium), output options and power supply options. Complex systems can easily be configured with redundant receivers, redundant power supplies and multiple output signals.
The M900 can be equipped with up to 8 independent IEEE 1588 ports to Synchronise large groups of PTP clients. The modular design offers very good scalability. If your PTP client population grows, you can simply add another PTP module. An LC-Display shows the status of the reference time source as well as the time service. Additionally three bi-color (green/red) LEDs clearly indicate the state of the three main components (time source, network time service, network) and a red alarm LED signals major system failures. The configuration and control of the system can be carried out via a powerful yet easily understandable web user interface, a text-based console setup tool is available for easy access to most configuration options and status information when you logged in via SSH, Telnet or the serial front port. The M900 platform can be combined with all available Meinberg oscillator options, ranging from the cost effective TCXO up to a Rubidium based oscillator with extremely stable holdover capabilities, ensuring a tightly Synchronised network environment in the absence of any external reference, even if this situation lasts for days, weeks or even months. Please note that the following technical specifications for pulse, frequency and serial outputs are based on a sample configuration and can be modified in order to fulfil your individual requirements. |
| Hypertext Transfer Protocol (HTTP) | HTTP/HTTPS (RC 2616) |
| IEC 61850 | Synchronisation of IEC 61850 compliant devices by using SNTP |
| Internet Protocol (IP) | IP v4, IP v6 |
| Network Interface | 1 x 10/100 MBit with RJ45 (up to 8 additional LAN interfaces possible) |
| Network Autoconfiguration Support |
|
| Network Interface | 1 x 10/100 MBit with RJ45 (up to 8 additional LAN interfaces possible) |
| Network Protocols OSI Layer 4 Transport Layer | TCP, UDP |
| Network Protocols OSI Layer 7 Application Layer | TELNET, FTP, SSH (incl. SFTP, SCP), HTTP, HTTPS, SYSLOG, SNMP |
| Network Time Protocol (NTP) | NTP v2 (RFC 1119), NTP v3 (RFC 1305), NTP v4 (RFC 5905) SNTP v3 (RFC 1769), SNTP v4 (RFC 4330) MD5 Authentication and Autokey Key Management |
| Operating System of the SBC | Linux with nano kernel (incl. PPSkit) |
| Parallel Redundancy Protocol (PRP) | PRP (IEC 62439-3) |
| Pulse Outputs | Pulse Per Second (PPS) via BNC connector (TTL level), pulse width 200ms |
| Relative Humidity | Max. 85% |
| Scope of Supply | Included in delivery is a MEINBERG outdoor antenna incl. mounting kit, pre-assembled antenna cable (except MRS, TCR and RDT models) and product documentation on USB storage. |
| Secure Shell SSH | SSH v1.3, SSH v1.5, SSH v2 (OpenSSH) |
| Simple Network Management Protocol (SNMP) | SNMPv1 (RFC 1157), SNMPv2c (RFC 1901-1908), SNMP v3 (RFC 3411-3418) |
| Status Info | Four bicolour LEDs showing status of: - reference time - time service - network - alarm |
| Technical Support | Meinberg offers free lifetime technical support via telephone or e-mail. |
| Telnet | Telnet (RFC 854-RFC 861) |
| Time Protocol (TIME) | Time Protocol (RFC 868) |
| WEEE Status of the Product | This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. |
