WVB600USB
WWVB Radio Clock for the Universal Serial Bus (USB)

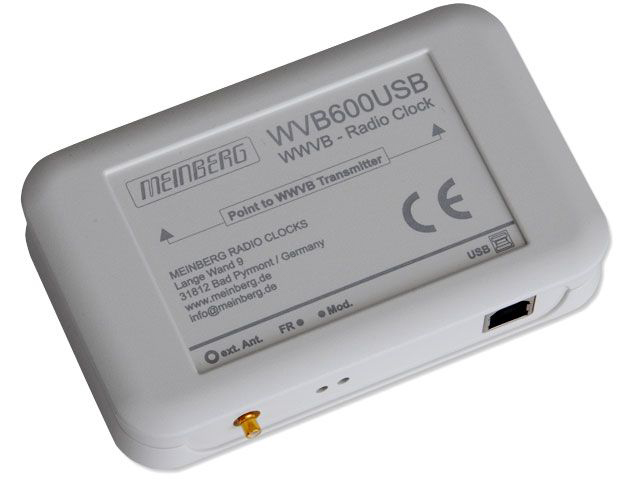

The WVB600USB is a Radio Clock that receives the WWVB long wave time signal and Synchronises a PC or laptop using a USB connection. The compact plastic housing includes an integrated antenna, an external antenna can be connected as an option to improve reception quality in noisy environments.
This device is a perfect alternative for synchronizing computer systems where no PCI slot or serial port is available for time Synchronisation.
Key Features
USB 2.0 (Universal Serial Bus), 5V
Receiver status LEDs
Buffered hardware clock
Powered by USB (no extra power supply required)
Connector for an external antenna
Plastic Case
3 Year Warranty
Need help selecting the right solution?
Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.
Technical Specifications
| Dimensions | 73mm x 117mm x 24mm (L x W x H) |
|---|---|
| Operating Temperature | 0 ... 50°C / 32 ... 122°F |
| RoHS | Yes |
| Accuracy | < +/-5 ms to UTC |
| Antenna Connector | SMB-Subminiature-coaxial-connector |
| Current Consumption | 90mA |
| Further Information | The WVB600USB shows the reception quality via its status LED and uses a buffered real time clock to maintain the time while powered off. There is no power supply required, the radio clock is powered by the Universal Serial Bus.
This USB clock offers a professional solution for your time Synchronisation requirements in mobile applications like field data acquisition with a laptop/notebook. It can be deployed whenever you need to Synchronise a standalone PC, laptop or server with the WWVB time signal broadcasted by the U.S. National Institute for Standards and Technology (NIST). The drivers package for Windows contains a time adjustment service which runs in the background and adjusts the Windows system time continuously and smoothly. A monitor program is also included which lets the user check the status of the device and the time adjustment service, and can be used to modify configurable parameters, if run with administrator rights. The driver packages for Linux and FreeBSD contain a kernel driver which allows the board to be used as a reference time source for the NTP daemon which is shipped with most Unix-like operating systems. This also turns the computer into an NTP time server which can also provide accurate time to NTP clients on the network. Some command line tools can be used to setup configurable parameters and monitor the status of the board. The Meinberg Single-Driver-Concept simplifies driver installation dramatically - there is only one driver who supports all Meinberg PCI and USB devices and if you use our API to access your Meinberg timing device from within your own applications, you can use the same source code for both PCI and USB devices. |
| Receiver | Integrated WWVB long wave radio receiver 60kHz |
| Relative Humidity | Max. 85% |
| Scope of Supply | Radio Clock, 3 m USB cable |
| Synchronisation Time | 2-3 minutes after signal reception has been established |
| WEEE Status of the Product | This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. |
