IMS-BPE

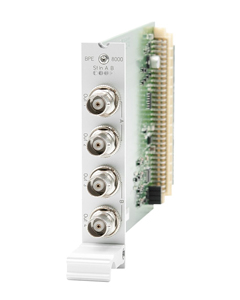

Meinberg’s new BPE8000 series will gradually replace the previous series of our Basic Port Expansion modules. Compared to the preconfigured 2000 series modules, the 8000 series provides flexible and customizable configuration of output signals at the physical connectors of the modules. There are eight variants available, offering different BNC and ST connection combinations.

With the new generation of BPE modules, the output signals can be selected via the web interface. An electronically controlled switch (multiplexer) on the module board allows the selection of signals distributed by the receiver module via the backplane. This not only provides the possibility to flexibly distribute the output signals to the existing physical connections, but also achieves a high degree of utilization of the modules, since no hardware update or an upgrade of the IMS system by further modules is required in case of new requirements by the application environment.
