Meinberg

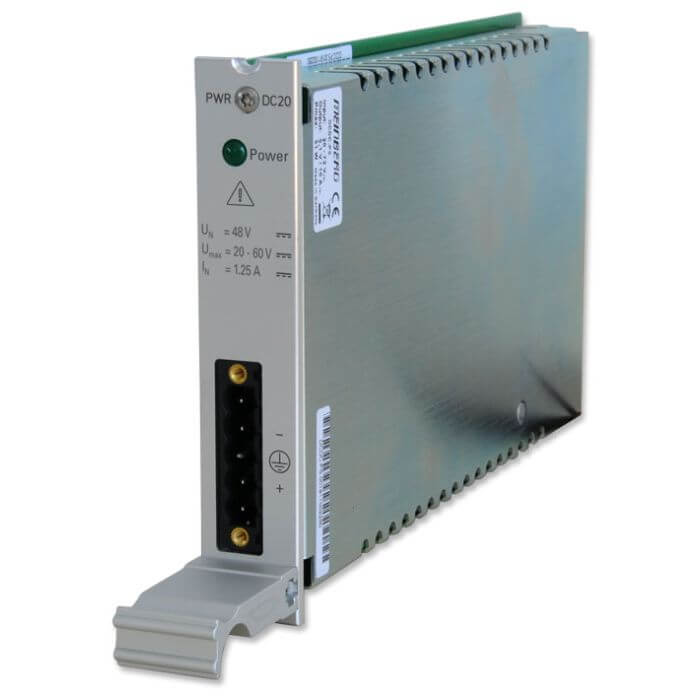

PWR-DC20
SKU: PWR-DC20
IMS Power Supply Unit 20-60 V DC
The PWR-DC20 module for Meinberg’s IMS platform accepts 20-60 V DC power and has been specifically designed to be used in Meinberg IMS systems. It is hot-swappable and can be combined with other IMS PWR modules to form a redundant power solution for an IMS system.
Key Features
- Power Supply 20-60 V DC
- Hot Plug capabilities
Need help selecting the right solution?
Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.
Technical Specifications
| Operating Temperature | 0 ... 50°C / 32 ... 122°F |
|---|---|
| RoHS | Yes |
| Voltage | Nominal Voltage: 20-60 V DC
Output Voltage: +5 V Output Current: 10 A Output Power: 50 W Fuse: 6 A (T) / 250V Protective Class: Class 1 - regarding EN 60950 |
| Power Consumption | Pmax = 50 W |
| Electrical Connectors | Power Connector: 5pin DFK |
| Further Information | This module has been specifically designed for Meinberg IMS systems. It features a load sharing bus that enables multiple power supplies to jointly generate power for an IMS system. This avoids a system outage in case of a power supply failure or loss of a power source.
The PWR-DC20 can be combined with other power supply modules, for example a PWR-AD10, to use different input voltages from different power sources. |
| Hot Plug Feature | It is possible to remove or install the power supply out of the terminal equipment during operation. |
| Relative Humidity | Max. 85% |
| Status Info |
|
| WEEE Status of the Product | This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. |
