10 MHz sine low phase noise output module

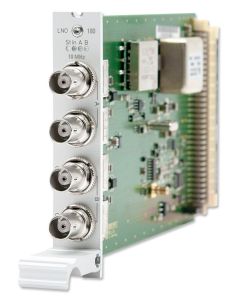

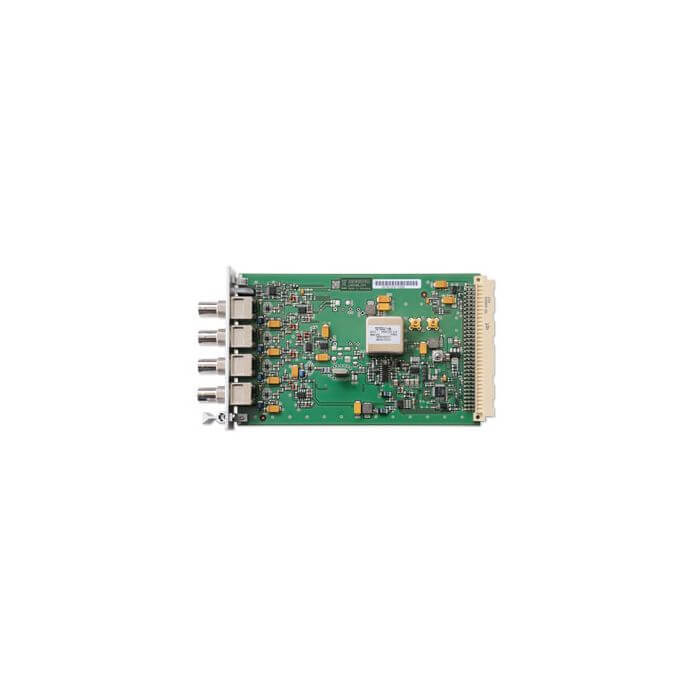

The IMS-LNO180 is a 10 MHz generator card and provides sinewave signals with low phase noise at four outputs. It has a microprocessor system which monitors the output signals and generates status signals for the management system. It may be preferably used in our modular IMS Systems, M900 timeserver platform and GPS based 3U housing.
Key Features
- 4x sine outputs - 10 MHz or 5 MHz
- Four LEDs: Signal status at corresponding output
- Input: 10 MHz, sine (1Vpp min.) or TTL
- Output Level: 5 dBm +/- 1 dBm into 50 Ohm
- Option: LNO-8dB with 8 dBm output level or
- LNO-12dB with 12 dBm output level
Need help selecting the right solution?
Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.
Technical Specifications
| Operating Temperature | 0 ... 50°C / 32 ... 122°F |
|---|---|
| RoHS | Yes |
| Interface | 4 sine outputs
10 MHz (optional 5 MHz) Output level: 5 dBm +/- 1 dBm into 50 ohm Option: LNO-8dB with 8 dBm output level LNO-12dB with 12 dBm output level |
| Electrical Connectors | 96-pin VG-rail DIN 41612 |
| Frequency Inputs | 10 MHz, sine (1Vpp min.) or TTL |
| Further Information | Functionality
A high-quality oscillator is Synchronised by the 10 MHz signal of the external reference clock and thus provides the high-precision clock for the IMS-LNO180. The microprocessor monitors the lock state of the PLL Synchronisation circuit and the warm-up phase of the oscillator and only enables the outputs after a successful phase Synchronisation. This state is also indicated by the four status LEDs (transition from red to green). In the phase synchronous state, the output level of the four outputs is monitored and in case of an error is signalled by the assigned red LED. Compatibility The IMS-LNO180 is an IMS module which is compatible with all systems of the IMS family. It can also be used on any slot (MRI, ESI, I/O). |
| Phase Noise Performance | LNO180 - 10 MHz
OCXO-SQ 1 Hz - 80 dBc/Hz 10 Hz - 100 dBc/Hz 100 Hz - 130 dBc/Hz 1 kHz - 140 dBc/Hz 10 kHz - 150 dBc/Hz OCXO-MQ 1 Hz - 85 dBc/Hz 10 Hz - 110 dBc/Hz 100 Hz - 135 dBc/Hz 1 kHz - 143 dBc/Hz 10 kHz - 155 dBc/Hz OCXO-HQ 1 Hz - 93 dBc/Hz 10 Hz - 126 dBc/Hz 100 Hz - 140 dBc/Hz 1 kHz - 145 dBc/Hz 10 kHz - 165 dBc/Hz LNO180/5 - 5 MHz option OCXO-MQ 1 Hz - 88 dBc/Hz 10 Hz - 115 dBc/Hz 100 Hz - 132 dBc/Hz 1 kHz - 145 dBc/Hz 10 kHz - 158 dBc/Hz |
| Power Supply Maximum Power Range | 5 dBm: +5 V @ 550 mA (steady state), +5V @670 mA (warm-Up)
8 dBm: +5 V @ 720 mA (steady state), +5 V @ 640 mA (warm up) 12 dBm +5 V @ 970 mA (steady state), + 5V @ 620 mA (warm up) |
| Quartz Filter | Bandwidth 1 kHz |
| Relative Humidity | Max. 85% |
| Status Info |
|
| WEEE Status of the Product | This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. |
