IMS-LNO183

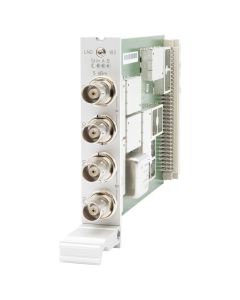

Output module for direct generation of 10 MHz sine-wave signals
An Innovative Solution for 10 MHz Sine-Wave Generation with Minimal Phase Noise Meinberg’s IMS-LNO183 is a plug-in module for Meinberg’s trusted line of IMS modular time server solutions.

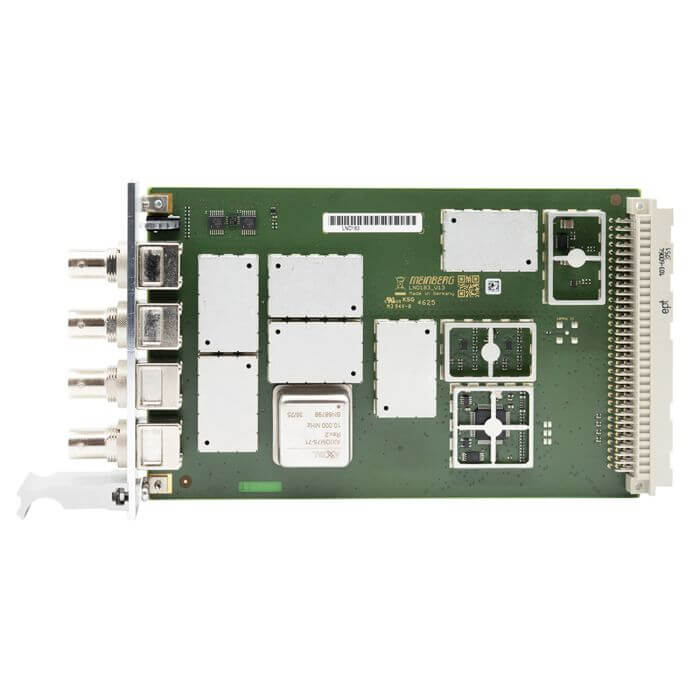

This 10 MHz sine-wave generator card provides extremely stable sine-wave signals with minimal phase noise across its four outputs. Such stability is essential in high-spec applications such as wide-range telecommunications networks, aerospace, and metrology, where an accurate 10 MHz sine-wave reference is essential for avoiding disruptive harmonic interference over long-distance distribution.
The module features a high-grade on-board oscillator that is independently locked to the 10 MHz pulse-wave reference signal of the IMS reference system, which is essential for maintaining the phase stability of the output signal.
The IMS-LNO183 has integrated output signal monitoring that allows the host IMS LANTIME system to monitor the status of the module, its outputs, and the phase-locked loop disciplining the on-board oscillator, ensuring reliable and useful management.
Key Features
- Four 10 MHz sine-wave outputs for parallel signal distribution
- Integrated high-grade oscillator for minimal phase noise
- Models:
- LNO 5 dBm for 5 dBm output power with 50 Ohm load
- LNO 8 dBm for 8 dBm output power with 50 Ohm load
- LNO 10 dBm for 10 dBm output power with 50 Ohm load
- LNO 12 dBm for 12 dBm output power with 50 Ohm load
Need help selecting the right solution?
Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.
Technical Specifications
| RoHS | The product is fully RoHS-compliant. |
|---|---|
| Power Consumption | (Maximum)
2.5 W to 4.0 W |
| Firmware Updates | Firmware is field-upgradeable; updates can be installed directly from the unit or via a remote network connection. Software updates are provided free of charge for the lifetime of your Meinberg product. |
| Phase Noise Performance | -105 dBc/Hz at 1 Hz -135 dBc/Hz at 10 Hz -155 dBc/Hz at 100 Hz -160 dBc/Hz at 1 kHz -165 dBc/Hz at >= 10 kHz |
| WEEE Status of the Product | The purchase of this product is considered to be a “B2B” transaction (non-household product) for the purposes of the European Union Waste of Electrical and Electronic Equipment Directive; the product falls under Category 6, “Small IT and Telecommunications Equipment”. For disposal, it must be returned to the manufacturer to ensure WEEE compliance. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will cover the costs for the waste disposal itself. |
Downloads
| Datasheet | Click to view Datasheet (PDF) |
|---|
