IMS-LIU
SKU: IMS-LIU

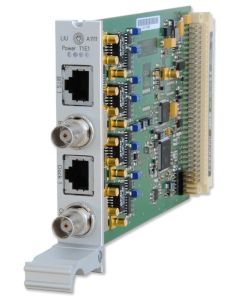

Line Interface unit
The LIU (Line Interface Unit) module generates different reference clock pulses which are derived from the GNSS-locked master oscillator of a preconnected satellite receiver. The output signals are available with high accuracy and stability therefore.
Key Features
- Synchronisation of telecom networks
- Synchronisation of transmitters/base stations (GSM / CDMA / UMTS / DAB / DVB)
- Clock and Framed telecom outputs
- Reference frequency delivered by preconnected GPS- or GLN-receiver
Need help selecting the right solution?
Our technical specialists can help you choose the right product, answer technical questions and provide a quotation.
Technical Specifications
| Operating Temperature | 0 ... 50°C / 32 ... 122°F |
|---|---|
| RoHS | Yes |
| Interface | Clock Outputs:
2048 kHz (E1-mode) or 1544 kHz (T1-mode), G.703, 75 Ohm, unbalanced 2048 kHz (E1-mode) or 1544 kHz (T1-mode), G.703, 120 Ohm, balanced Framed Outputs: 2048 kBit/s (E1-mode) or 1544 kBit/s (T1-mode), 75 Ohm, unbalanced or 2048 kBit/s (E1-mode) or 1544 kBit/s (T1-mode), 120 Ohm, balanced Output pulses according to G.703 (E1-mode) or T1.403 (T1-mode) (T1-Mode) Line Coding HDB3 (E1-mode) or B8ZS (T1-mode) |
| Accuracy of Frequency Outputs | The accuracy of the generated output signals depends on the master oscillator of the preconnected reference clock. |
| Control Elements | E1- or T1-generator, settable by web interface |
| Current Consumption | 5 V +-5%, 450 mA |
| Electrical Connectors | 96-pin VG-rail DIN 41612 |
| Power Supply Maximum Power Range | +5V DC |
| Relative Humidity | Max. 85% |
| WEEE Status of the Product | This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. |
